📝 Overview
The 2WD RC Smart Robot Car Kit – Gravity Electronics Edition is a DIY robotic car chassis designed for building and developing smart robot car projects. It features a durable acrylic frame, two DC geared motors, rubber wheels, and a caster wheel for stable movement. The kit is suitable for robotics learning, electronics experiments, and custom remote-controlled car projects.
⚙️ Key Features
Gravity Electronics Edition acrylic chassis.
Two-wheel drive (2WD) design.
Two DC geared motors with dual shafts.
Rubber tires for improved traction.
Front or rear caster wheel for balance and support.
Easy-to-assemble frame with mounting hardware.
Suitable for robotics and educational projects.
📦 Technical Specifications
Parameter | Specification |
|---|
Product Type | 2WD Robot Car Chassis Kit |
Edition | Gravity Electronics |
Chassis Material | Acrylic |
Chassis Plates | 2 |
Drive System | Two-Wheel Drive (2WD) |
Wheel Diameter | 65 mm |
Motor Type | Dual-Shaft DC Geared Motor |
Motor Voltage | 3–12V DC |
Motor Speed | 600 RPM (specified motor rating) |
Support Wheel | Plastic Caster Wheel |
🛠️ Applications
DIY smart robot cars.
Robotics and STEM education.
Remote-controlled vehicle projects.
Obstacle avoidance and line-following robots (with additional components).
Arduino-based robotics projects (with additional components).
Motor control and automation experiments.

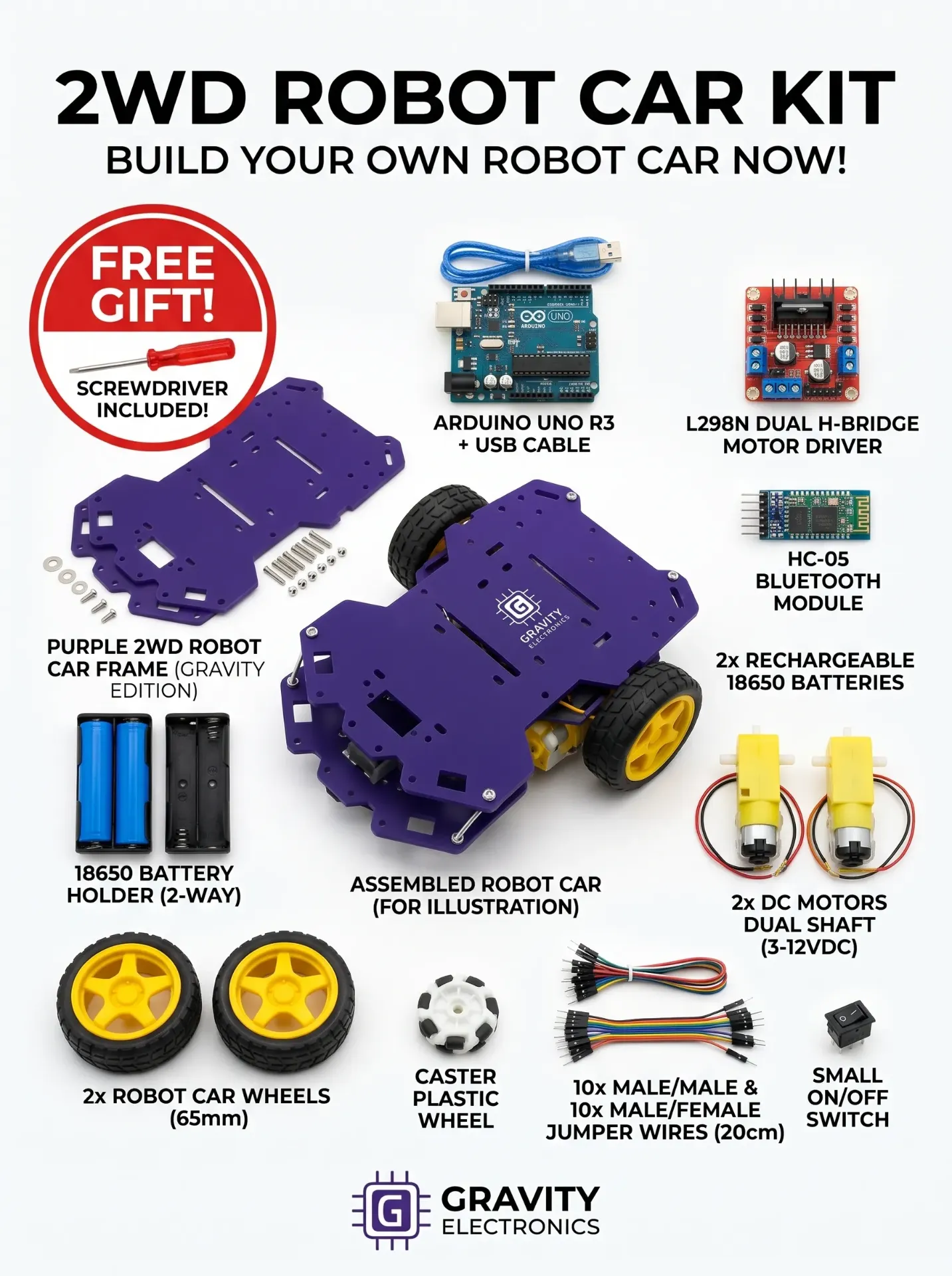

📦 Package Includes
- 1x Arduino Uno R3 Original AT16U2 + cable
- 2x Rechargeable Liion Battery 18650 3.7 V 1200 ma new
- 1x Battery Holder 2- 18650 ways
- 1x Bluetooth Module HC-05 (6pin)
- 1x L298N Dual HBridge Motor Driver
- 10x Male / Male Jumper (20cm)
- 10x Male / Female Jumper (20cm)
- 1x ON/OFF Switch 2 Pins small
- 1x Frame 2dw robot RC car gravity edition
- 2x DC Motor Dual Shaft 3:12VDC 600RPM
- 2x Robot Car Wheel Tyre (65mm)
- 1x Caster plastic Wheel Robotic Car
- 1x Screwdriver (Free Gift)
