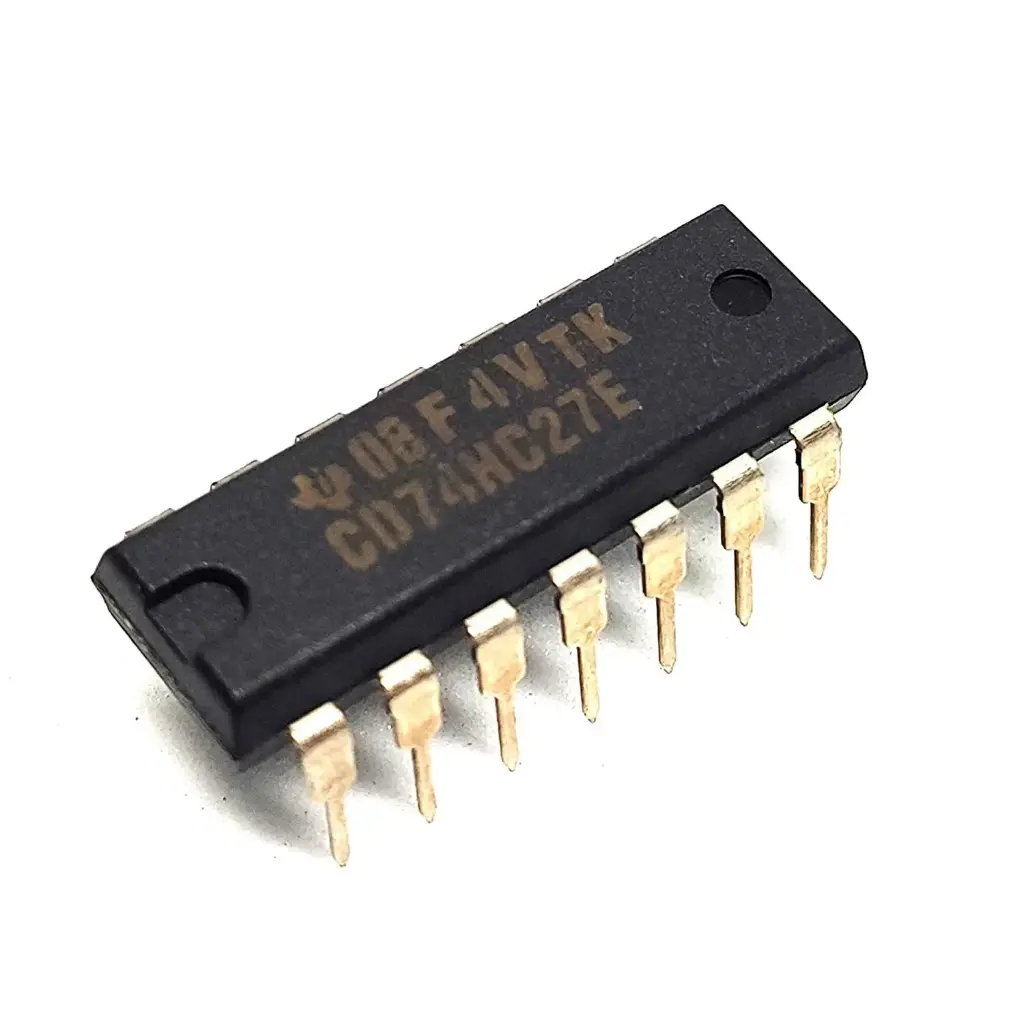

7427 Triple 3 Input AND Gate

7427 Triple 3 Input AND Gate
Features
  • Three independent 3-input NOR gates in one IC.
  • High-speed TTL logic operation.
  • Performs standard NOR logic function.
  • Wide operating voltage range: 4.75V to 5.25V.
  • Low power consumption and fast switching.
  • Compatible with all TTL and CMOS logic families.
  • High noise immunity for reliable performance.
  • Standard 14-pin Dual Inline Package (DIP-14).
  • Suitable for cascading and complex logic designs.
  • Operating temperature range: 0°C to +70°C.

Pinout Configuration


Pin #TypeDescription
1InputInput to the first NOR gate.
2InputInput to the first NOR gate.
3InputInput to the second NOR gate.
4InputInput to the second NOR gate.
5InputInput to the second NOR gate.
6OutputOutput from the second NOR gate.
7PowerConnect to ground (GND).
8OutputOutput from the third NOR gate.
9InputInput to the third NOR gate.
10InputInput to the third NOR gate.
11InputInput to the third NOR gate.
12OutputOutput from the first NOR gate.
13InputInput to the first NOR gate.
14PowerPositive power supply (VCC). Connect to +5V power.

​
