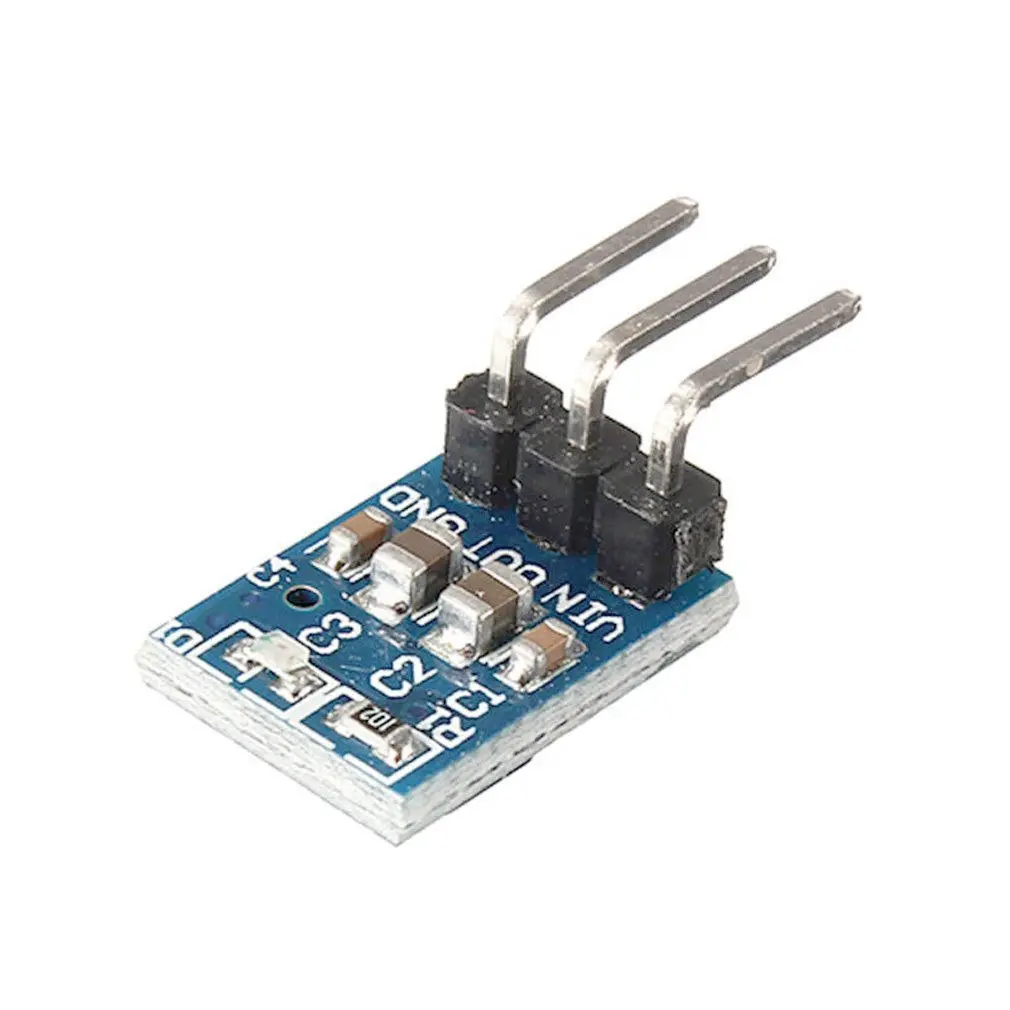

AMS1117 3.3V Power Module
Features :
- Fixed 3.3V Output: Provides a consistent 3.3V output for reliable device operation.
- Wide Input Voltage Range: Accepts 4.5V to 15V DC, offering flexibility for various power sources.
- Maximum Output Current: Supports up to 800mA, suitable for most low-power applications.
- Onboard Power Indicator: Red LED provides visual confirmation of power status.
- Compact and Lightweight: Small footprint for easy integration into space-constrained projects.
- Breadboard Compatible: Standard 0.1″ header pins allow direct insertion into breadboards or easy connection via jumper wires.
Specifications :
| Parameter | Value |
| Input Voltage | 4.5V to 15V DC |
| Output Voltage | 3.3V DC |
| Maximum Output Current | 800mA |
| Dropout Voltage | 1.1V at 800mA |
| Line Regulation | 0.2% maximum |
| Load Regulation | 0.4% maximum |
| Operating Temperature Range | -40°C to +125°C |
