Arduino Uno R3 - Clone FTDI ATML MEGA16U2

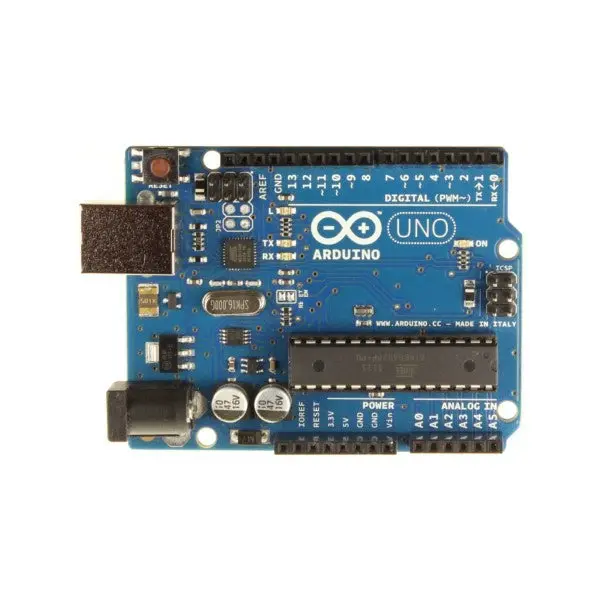

Arduino Uno R3 – Clone Board (FTDI / ATmega16U2 USB)
This is a high-quality clone of the official Arduino Uno R3, featuring either the FTDI FT232RL chip or the ATmega16U2 USB-to-Serial interface. It is fully compatible with the Arduino IDE, shields, and libraries, making it ideal for students, hobbyists, and professionals building automation, robotics, or IoT projects.
⚙️ Technical Specifications
| Parameter | Specification |
|---|---|
| Microcontroller | ATmega328P |
| USB Interface | FTDI FT232RL or ATmega16U2 |
| Operating Voltage | 5V |
| Input Voltage (rec.) | 7–12V (via barrel jack) |
| Digital I/O Pins | 14 (6 PWM) |
| Analog Input Pins | 6 |
| Flash Memory | 32 KB (0.5 KB used by bootloader) |
| SRAM | 2 KB |
| EEPROM | 1 KB |
| Clock Speed | 16 MHz |
| USB Port | Type B (standard printer-style) |
🧪 Applications
- Smart home & automation systems
- Robotics (line follower, obstacle avoidance)
- IoT (with WiFi modules like ESP8266)
- Educational electronics & programming
📦 What’s Included
- ✅ 1x Arduino Uno R3 Clone Board
- ✅ Header Pins (pre-soldered)
