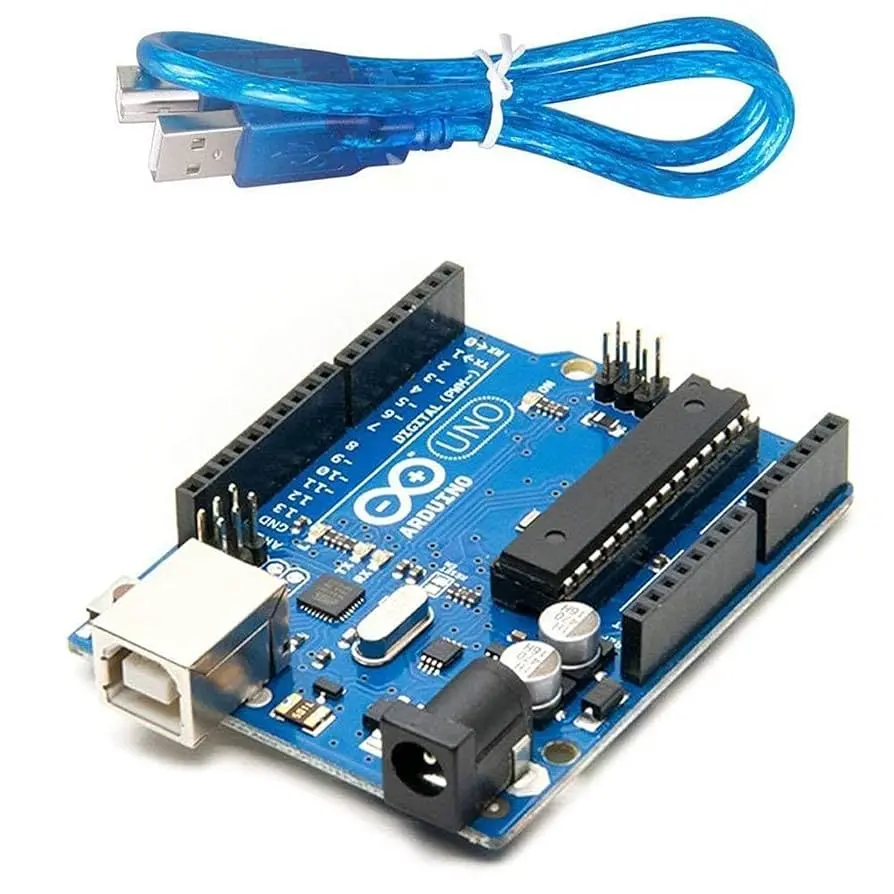

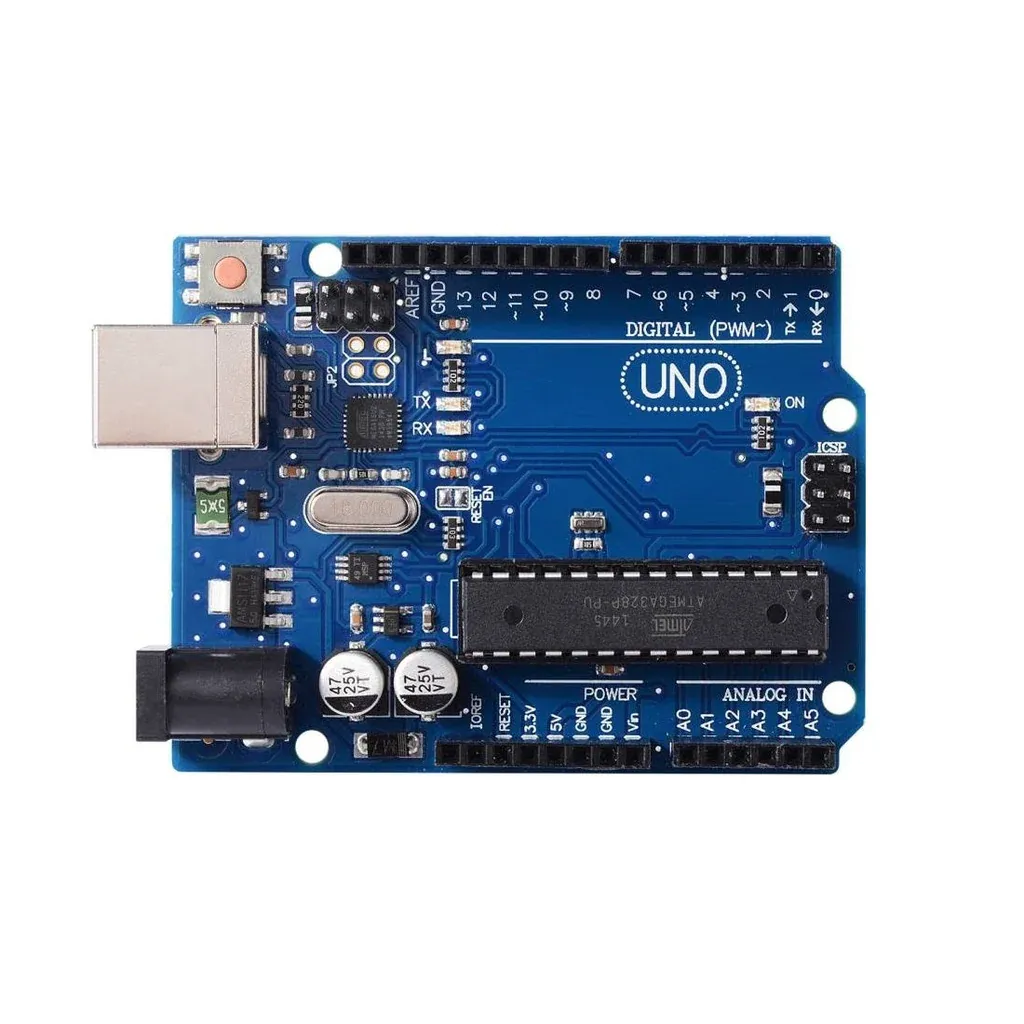

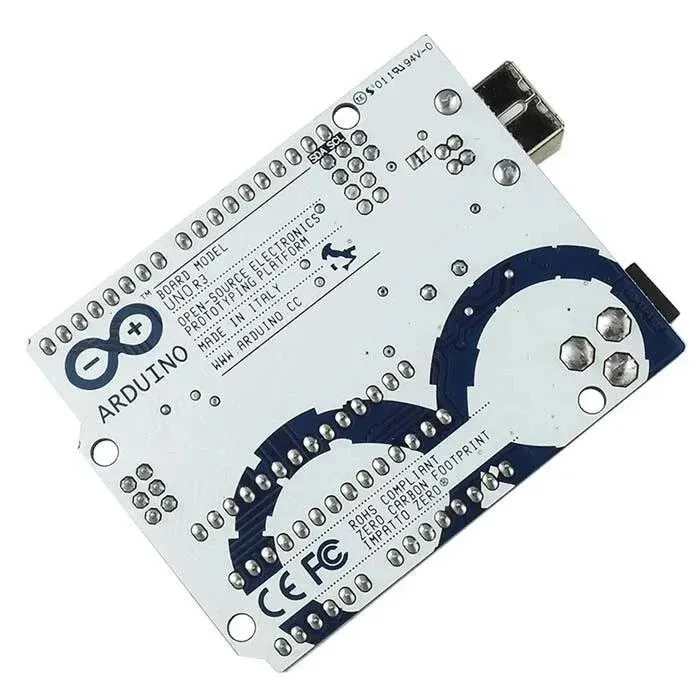

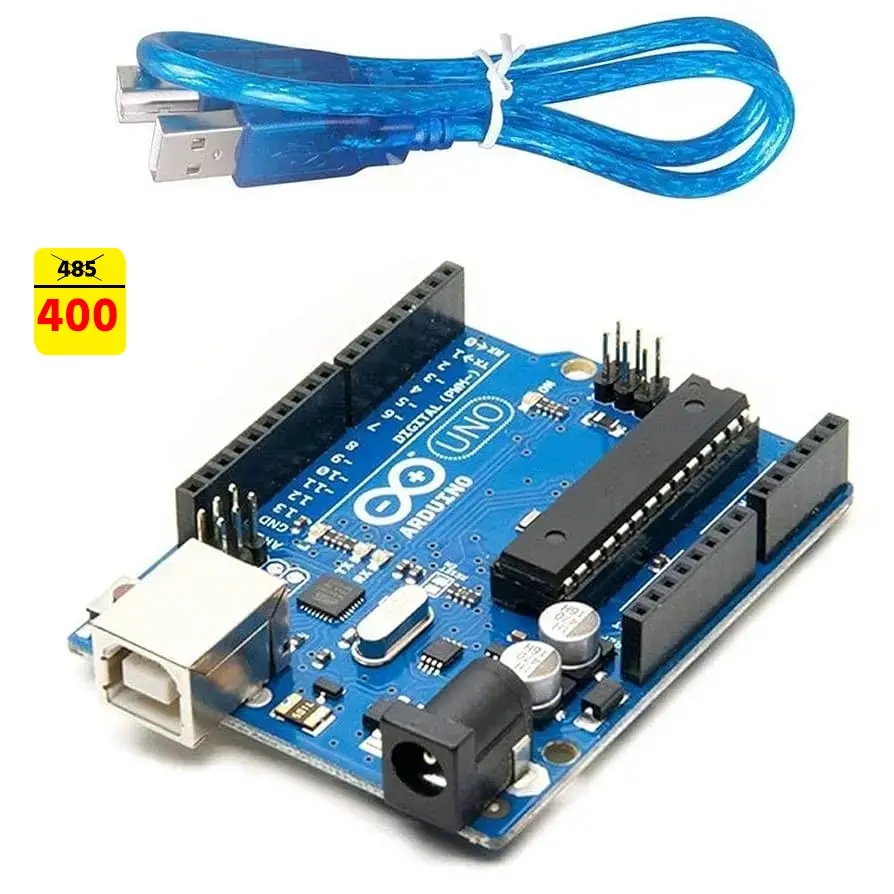

Arduino Uno R3 Clone Original Chips + cable 30 cm

• There are a few changes in the UNO, here is what they are
• ATmega16U2 instead of the 8U2 found. This allows for faster USB transfer rates.
• No drivers needed for Linux or Mac (.inf file for Windows is needed and included in the Arduino IDE)
• The ability to have the Uno show up as a keyboard, mouse, joystick, etc.
• New SDA and SCL pins next to the AREF. this is a duplication of the Analog 4 and 5 pins.
• Two new pins placed near the RESET pin. One is the IOREF that allow the shields to adapt to the voltage provided from the board. The other is a not connected and is reserved for future purposes.
• Reset button moved from center of board to corner near USB connector, allowing resets when shields are connected.
• Larger heat sink copper area for the LM117 regulator

Documents

For getting started for Arduino book ,Click Here

For simply Arduino(أردوينو ببساطه) book in Arabic ,Click Here
