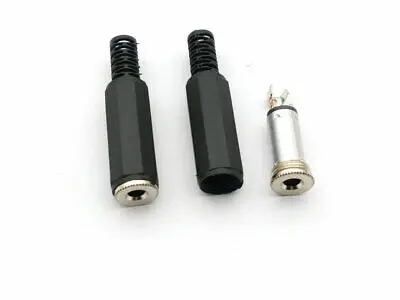

AUX 3.5mm Female Jack Connector
🎧 3.5 mm AUX Female Jack Connector (Stereo, Panel or PCB Mount)
A versatile and essential 3.5 mm female jack for audio input and output, designed for panel or PCB mounting. Perfect for connecting headphones, speakers, microphones, smartphones, and audio modules in DIY electronics, audio systems, and instrument panels.
⚙️ Key Specifications
Connector Type: 3.5 mm (1/8”) TRS Stereo
Mounting Options: In-line, panel, PCB through-hole
Contacts: Tip (Left), Ring (Right), Sleeve (Ground)
Application Ratings: Standard audio-level signals
Typical Material: Gold-plated for low resistance, black insulated body
🔧 Features
Stereo Audio Support: Carries left & right channels plus ground
Wide Compatibility: Supports headphones, audio cables, mic/headset connections
Mounting Flexibility: Available as resin inline jacks, panel sockets, or PCB-mounted TRS jacks
Solid Contact Design: Can include switching contacts for auto-detection or muting
🛠️ Usage & Wiring Guide
Tip → Left audio channel
Ring → Right audio channel
Sleeve → Common ground
