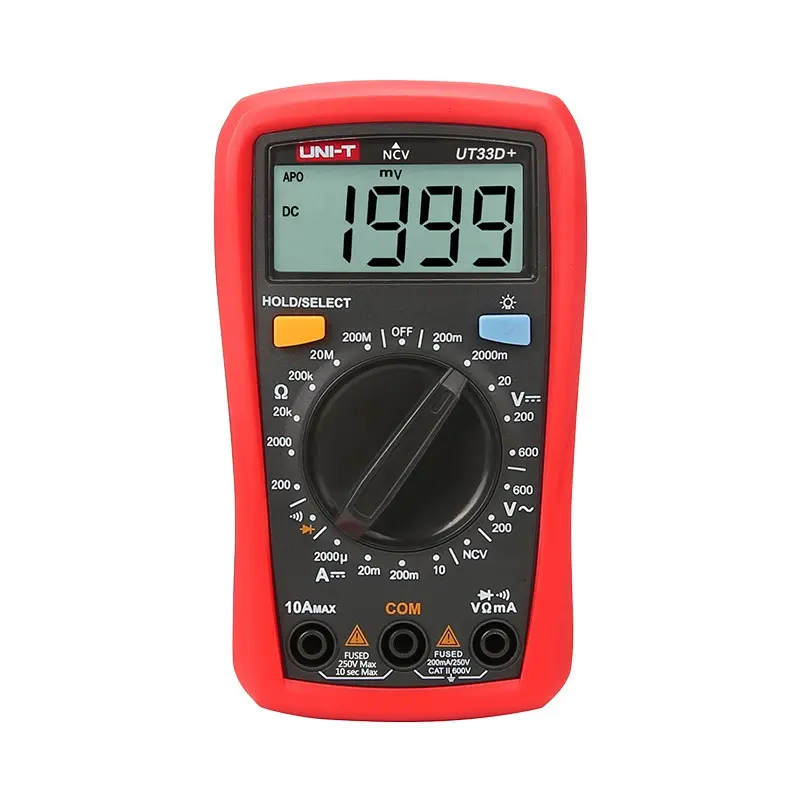

UT33+ Series Palm Size Multimeters
The new generation UT33+ series redefines the performance standards for entry-level digital multimeters. Our innovative industrial design ensures that these products can withstand 2 2-meter drop. The new LCD display layout provides a better user experience. This series ensures that users can work safely in CAT II 600V environment.
non-contact voltage (NCV) test (UT33D+).
Features of UT33+ Series Palm Size Multimeters
- Clear LCD display
- Comfortable protective cover, with test lead hanging groove
- 2 meters drop test, precision protection
- Loud buzzer sound; Ergonomic design
Specifications of UT33D+ Series Palm Size Multimeter
| Specifications | Range | UT33D+ |
| DC voltage (V) | 200mV/2V/20V/200V/600V | ±(0.5%＋2) |
| AC voltage (V) | 200V/600V | ±(1.2%+3) |
| DC current (A) | 2000μA/20mA/200mA/10A | ±(1%+2) |
| Resistance (Ω) | 200Ω/2kΩ/20kΩ
/200kΩ/20MΩ/200MΩ | ±(0.8%+2) |
| Features |
| Display count | | 2000 |
| Auto power off/Auto backlight off | | √ |
| Diode test/Continuity buzzer | | √ |
| 2m drop test/ Test probe holder | | √ |
| Range selection | | Manual |
| NCV | | √ |
| General Characteristics |
| Power | 1.5V battery (R03) x 2 |
| Display | 66mm x 51mm |
| Product net weight | Red and grey |
| Product Color | 206g (batteries included) |
| Product size | 134mm x 77mm x 47mm |
Applications of UT33+ Series Palm Size Multimeters
UT33D+ AC Voltage Measurement
