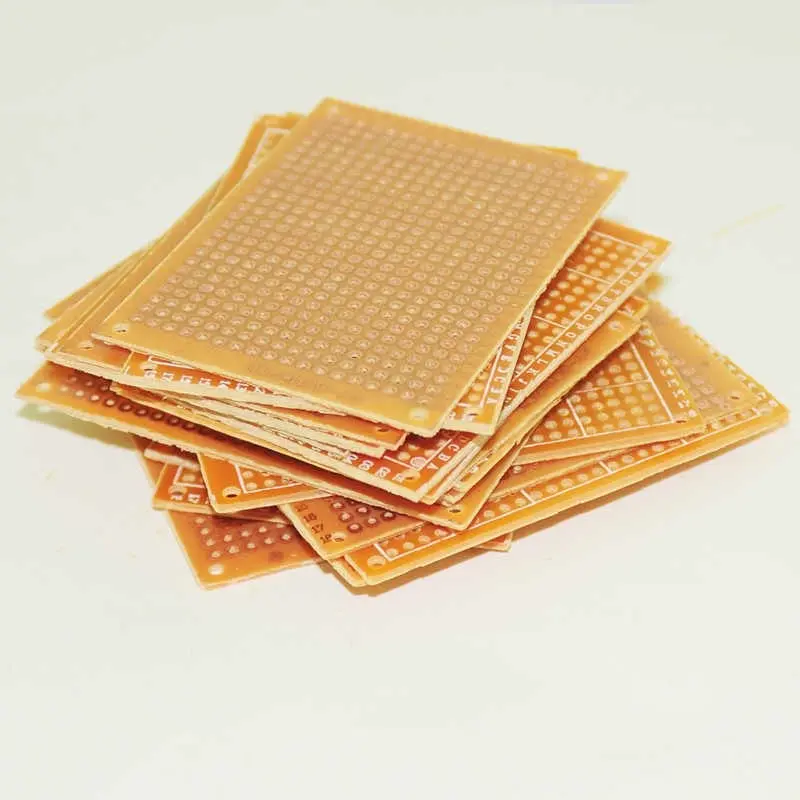

PCB Prototype Board FR-2 7x9 cm dotted
🔧 PCB Prototype Board – Vero Board FR-2
(Dotted • Line • Center Split • Breadboard Style)
The Vero Board (Prototype PCB) is a must-have for electronics enthusiasts and engineers. Made from high-quality FR-2 (Flame Resistant) material, these boards are available in multiple track layouts to suit a wide range of prototyping needs. Ideal for soldering through-hole components like resistors, capacitors, ICs, and headers.
🧱 Available Variants
| Variant | Description |
|---|---|
| Dotted Type | Individual pads for each hole – maximum flexibility |
| Line Type | Copper strips run horizontally – ideal for power rails or logic lines |
| Center Split | Line type with center copper cuts – emulates standard breadboard layout |
| Breadboard Style | Mimics real breadboard with connected rows/columns for easy porting |
⚙️ Technical Specifications
| Parameter | Value |
|---|---|
| Material | FR-2 (Phenolic Paper Resin) |
| Board Thickness | ~1.6 mm |
| Hole Pitch | 2.54 mm (standard DIP spacing) |
| Hole Diameter | ~1 mm |
| Soldering Side | Single-sided copper (one layer) |
| Sizes Available | Commonly: 5×7 cm, 7×9 cm, 9×15 cm, etc. |
🛠️ Applications
DIY circuit prototyping
Arduino or ESP32 interfacing
Sensor and power supply testing
Custom breakout boards
Educational lab use for students
📌 Tips
Use a cutter or drill to modify copper traces in Line or Split types
Ideal for permanent soldered projects after breadboard testing
Combine with male/female headers, IC sockets, and jumpers for best results
