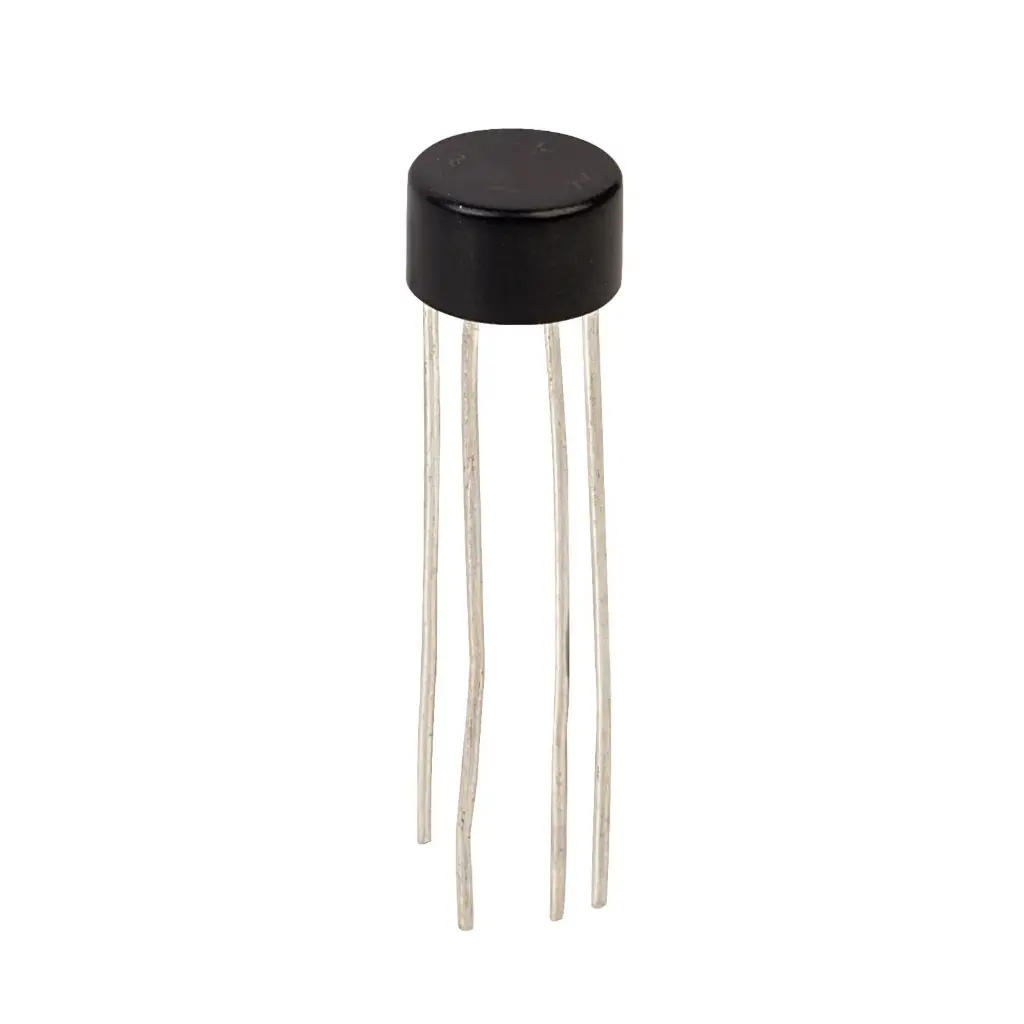

Bridge Rectifier 1A W04M 1 A

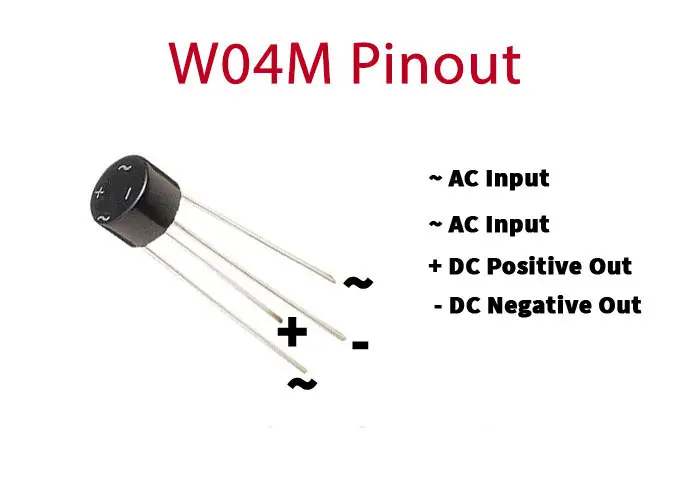

W04M Pin Configuration
| Pin | Description |
|---|---|
| ~ | AC Input |
| ~ | AC Input |
| + | DC Positive Voltage |
| – | DC Negative Voltage |
Specification:-
| Type of bridge rectifier | single-phase |
| Max. off-state voltage | 0.4kV |
| Load current | 1.5A |
| Max. forward impulse current | 50A |
| Version | round |
| Case | WOM |
| Electrical mounting | THT |
| Leads | wire Ø 0.75mm |
