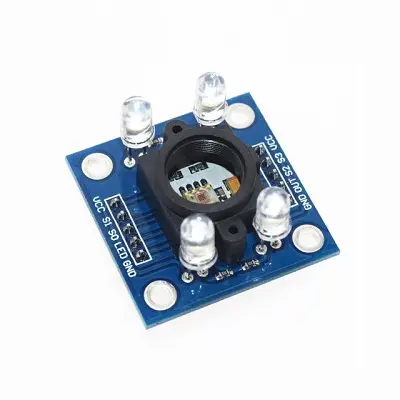

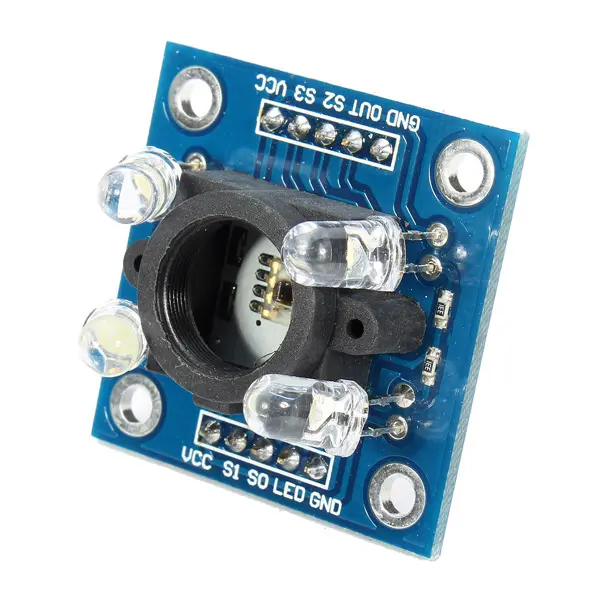

Color Sensor TCS3200
🎨 Color Sensor – TCS3200
Full-Color Recognition Module for Arduino & Robotics
The TCS3200 color sensor detects and measures the intensity of red, green, and blue (RGB) colors using an array of photodiodes with color filters. It outputs a square wave signal whose frequency is directly proportional to the detected color intensity, making it easy to interface with microcontrollers like Arduino, Raspberry Pi, or ESP32.
⚙️ Technical Specifications
| Parameter | Specification |
|---|---|
| Model | TCS3200 |
| Operating Voltage | 2.7V – 5.5V |
| Interface | Digital (frequency output) |
| Sensing Range | Full RGB detection |
| Photodiodes | 64 (16 each for Red, Green, Blue, and Clear) |
| Output Signal | Square wave, frequency proportional to light intensity |
| Module Size | ~30mm × 25mm |
✅ Features
🔹 Detects Red, Green, and Blue colors with high accuracy
🔹 Programmable output scaling (100%, 20%, 2%, Power Down)
🔹 Easy-to-use digital frequency output
🔹 Works directly with Arduino libraries
🔹 Can detect colors on objects, surfaces, or liquids
🧠 Applications
🎨 Color sorting robots
🛠 Industrial automation
📦 Quality control systems
🎮 Interactive electronics projects
📱 Consumer electronics
