Magnet Disc N35 Neodymium 8x5mm

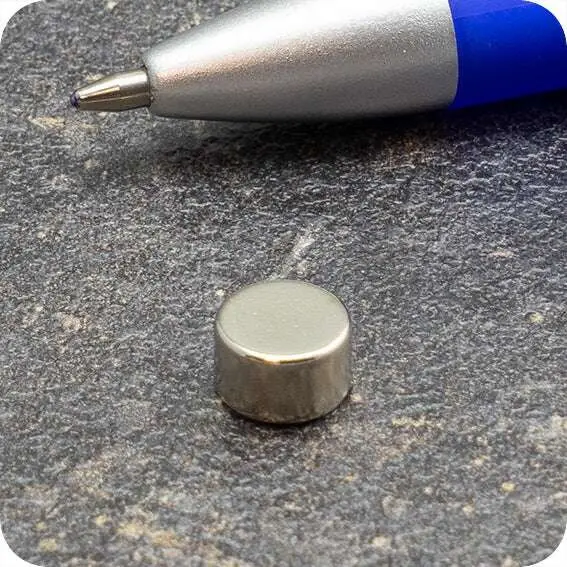

🧲 N35 Neodymium Disc Magnet – 8×5mm (Strong Rare Earth Magnet)
The N35 Neodymium Disc Magnet (8mm diameter × 5mm thick) is a powerful rare-earth magnet known for its high magnetic strength relative to its size. It is ideal for use in electronics, sensors, closures, prototyping, DIY projects, and robotics. These magnets are coated for durability and corrosion resistance.
⚙️ Technical Specifications
| Parameter | Specification |
|---|---|
| Material | Neodymium Iron Boron (NdFeB) |
| Grade | N35 (standard strong magnet) |

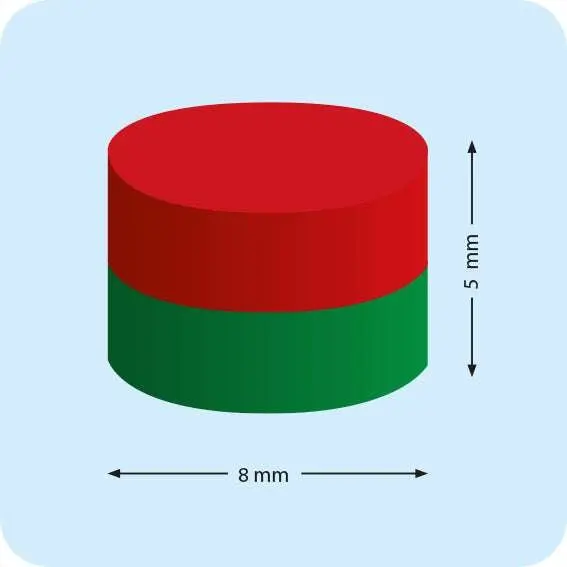

| Shape | Disc |
| Diameter | 8 mm |
| Thickness | 5 mm |
| Coating | Nickel-Copper-Nickel (Ni-Cu-Ni) |
| Magnetization | Axial (through thickness) |
| Pull Force | Approx. 1.2 – 1.5 kg |
| Max Working Temp | 80°C (176°F) |
🛠️ Applications
Position sensors in mechatronics
Door latches and magnetic locks
Educational & STEM kits
Mini generators and motors
Hobby and model building
Holding and mounting components
⚠️ Handling Tips
🔒 Very strong – handle with care to avoid pinching
⚡ Keep away from electronics, pacemakers, and magnetic storage
🧪 Not suitable for high-heat environments over 80°C
📦 Store separately to avoid attracting ferrous items
