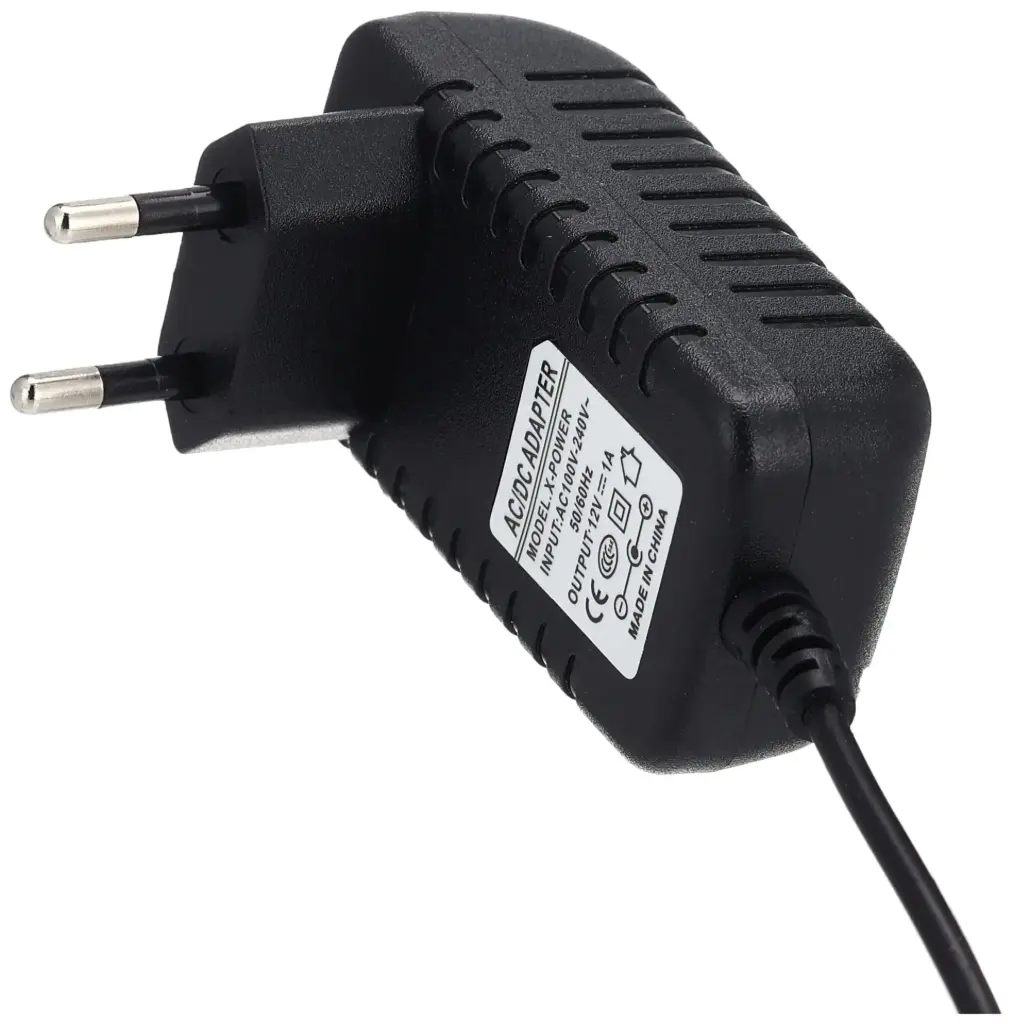

AdAdapter Fixed 12Vdc 1A

🔌 Fixed 12 V DC Power Adapter – 1 A

🔎 Overview

A compact, switch-mode wall-mounted power adapter designed to deliver a steady 12 V DC output at up to 1 A (12 W). It’s widely used for powering electronics like Arduino-based projects, sensors, LED strips, CCTV cameras, routers, and other low-current devices

⚙️ Key Features

• AC Input: 100–240 V, 50–60 Hz (universal worldwide)

• DC Output: Fixed 12 V ±5%, 1 A (12 W)

• Connector: Standard barrel plug (5.5 × 2.1 mm or 5.5 × 2.5 mm), center‑positive

• Protections: Over-current, short-circuit, over-voltage, and thermal shutdown

• Efficiency: Typically ≥ 80 %, using regulation to avoid excess heat

• Cable: Approximately 1–1.5 m long

• Operating Temperature: 0–40 °C; storage –20 °C to +70 °C

🔧 Usage

• Barrel plug wiring:

sql
CopyEdit
Centre → +12 V
Outer → GND

• Plug into wall AC outlet; LED indicator lights up when the adapter is powered

• Connect to your load—ensure it draws ≤ 1 A

• Common GND required if powering Arduino and peripherals; Arduino can be powered via its barrel or VIN pin

🎯 Applications

• Powering Arduino boards and shields via VIN or DC jack

• Supplying LED strips, CCTV or router devices

• Running 12 V motors, sensors, and relays (with transistor driver)

• General-purpose DC power for bench tests and prototypes
