Dip switch 2-way pin

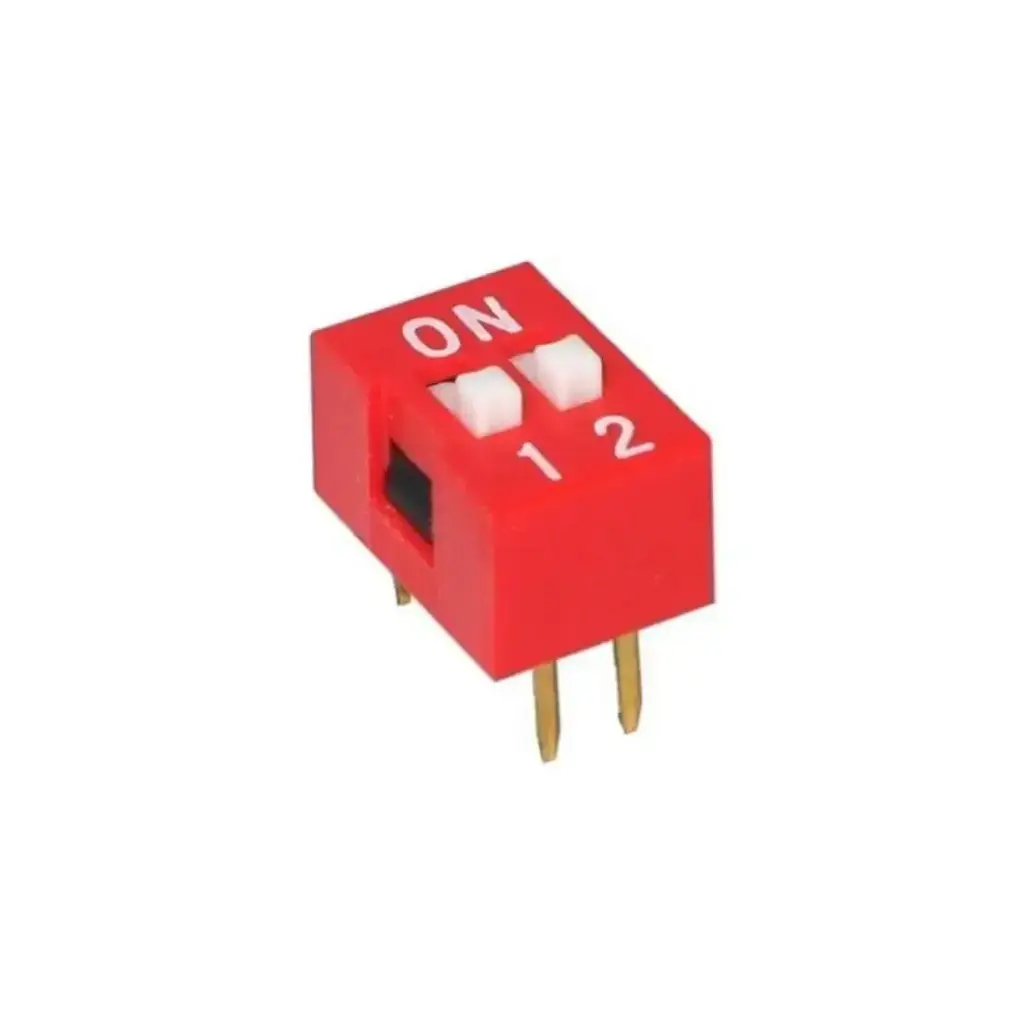

🔘 DIP Switch 2-Way – 2-Position, 2-Pin (Slide Type)

The 2-way DIP switch is a compact and reliable manual switch designed for setting configurations or modes in circuits. Each switch can be toggled ON or OFF individually, making it ideal for user-defined settings in digital electronics.

⚙️ Specifications:

• Type: 2-way DIP switch

• Number of Switches: 2

• Contact Type: SPST (Single Pole Single Throw)

• Mounting: Through-hole (2×2 pins)

• Pitch: Standard 2.54mm (0.1 inch)

• Switch Type: Slide

• Current Rating: Typically 25mA @ 24V DC

• Dimensions: Compact DIP-2 form factor

• Color: Red housing with white actuators

⭐ Features:

• Easy-to-use manual switch for digital logic settings

• Reliable ON/OFF control without software

• Perfect for microcontroller configuration modes

• Can be soldered to PCBs or used in breadboards

📦 Applications:

• Arduino and embedded systems

• Mode selection for development boards

• Address selection (e.g., I²C bus addresses)

• DIY projects, robotics, and logic testing
