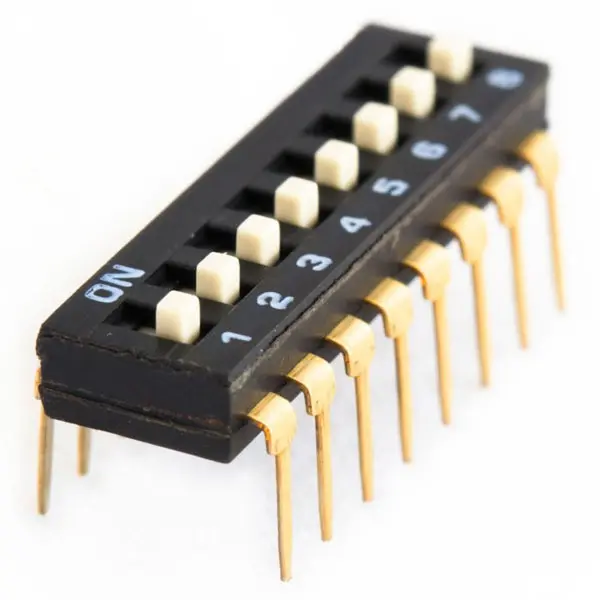

DIP Switch 8 Way – Long Leg
DIP Switch
When we went looking for DIP Switches, our primary concern was how well they fitted in breadboards.
DIP switches will fit in a breadboard but insertion is hard and the resulting connection is tentative at best. These exhibit none of those problems as they have the same type of legs as a DIP IC package.
These are high-quality switches with gold-plated legs.
Specifications:
| COLOUR | Black |
| PACKAGE | DIP |
| NUMBER OF PINS/CONDUCTORS | 16 |
| RATED CURRENT | 25mA |
| RATED VOLTAGE | 24V |
| OPERATING TEMPERATURE | -20°C to 85°C |
| TYPE | SPST |
| POSITIONS | 8 |
| CONTACT RESISTANCE | 50mΩ max |
| INSULATION RESISTANCE | 100MΩ at 500V DC |
| SWITCHING LIFE | 2,000 cycles |
| LEAD PITCH | 2.54mm |
| Number of Positions | 8 |
