📝 Overview

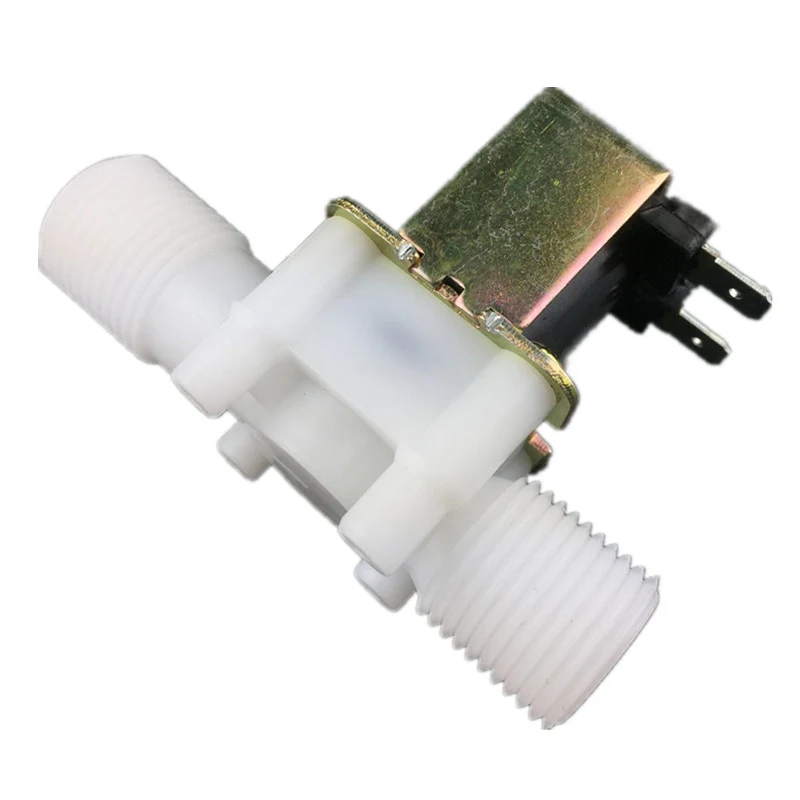

The 12V DC Electric Water Solenoid Valve is an electrically operated valve designed to control water flow automatically. It features a Normally Closed (NC) mechanism, meaning the valve remains closed when power is disconnected and opens when 12V DC is applied. It is suitable for water control systems, irrigation projects, automatic dispensers, and Arduino-based automation applications.
⚙️ Key Features
Operates on 12V DC.
Normally Closed (NC) operation.
Automatically controls water flow using electrical signals.
1/2-inch threaded water connections.
Easy integration with electronic control systems.
Suitable for automatic irrigation and water dispensing.
Compact design for installation in water pipelines.
📦 Technical Specifications
Parameter | Value |
|---|
Product Type | Electric Water Solenoid Valve |
Operating Voltage | 12V DC |
Rated Current | 600mA–1A (model dependent) |
Operation Mode | Normally Closed (NC) |
Port Size | 1/2 Inch |
Working Pressure | 0.02–0.8 MPa (typical) |
Fluid Type | Water |
Maximum Fluid Temperature | Model dependent |
Valve Type | Diaphragm Solenoid Valve |
⚠️ Usage Notes
Requires a suitable 12V DC power supply.
Use a relay or MOSFET driver with a flyback diode when controlling it with Arduino.
Check the water flow direction before installation.
