Female Type A USB Connector Vertical DIP 4 Pin

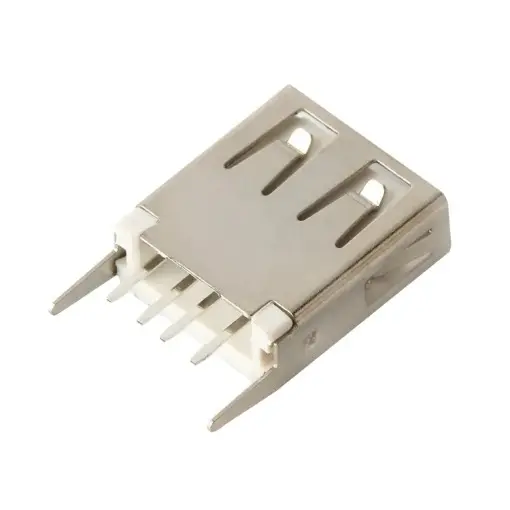

The PCB Solder Female Type A USB Connector Vertical DIP 180° 4 Pin is a standard USB interface component designed for vertical mounting on printed circuit boards. With a 180° orientation, it allows direct plug-in of USB Type A male cables from the top, making it ideal for compact and upright device layouts. This 4-pin connector supports USB 2.0 data transmission and power delivery, ensuring reliable performance in a wide range of electronic applications. Its DIP (Dual In-Line Package) through-hole design provides secure mechanical anchoring and easy soldering, making it well-suited for use in embedded systems, development boards, industrial controls, and consumer electronics.
Features
- Standard USB Type A female interface.
- Vertical 180° orientation for top-entry connections.
- 4-pin configuration compatible with USB 2.0
- DIP (Dual In-Line Package) through-hole mounting.
- Durable metal shielding for signal integrity and EMI protection.
- Easy soldering and strong mechanical stability.
- Suitable for compact and upright PCB designs.
- Compatible with various embedded and consumer electronic devices.
Specifications
| Product Attribute | Attribute Value |
| Product Category: | USB Connectors |
| Product: | USB Type A Connectors |
| Datasheet | Vertical DIP 180° Type A USB Connector |
| Gender: | Female |
| Standard: | USB 2.0 |
| Termination Style: | Through Hole |
| Number of Contacts: | 4 Contact |
| Number of Ports: | 1 Port |
| Current Rating: | 3 A |
| Voltage Rating: | 30 V |
| Mounting Angle: | Vertical DIP 180° |
| Mounting Style: | PCB Mount |
| Color: | White |
| Contact Material: | Copper Alloy |
| Housing Material: | Metal and Thermoplastic plastics |
| Shell Material: | Nickel-plated steel |
| Features: | 10000 cycles |
| Flammability Rating: | UL 94 V-0 |
| Insulation Resistance: | 1000 MΩ at 500VDC |
| Maximum Operating Temperature: | + 85 C |
| Minimum Operating Temperature: | – 25 C |
| Unit Weight: | 4 g |
