📝 Overview

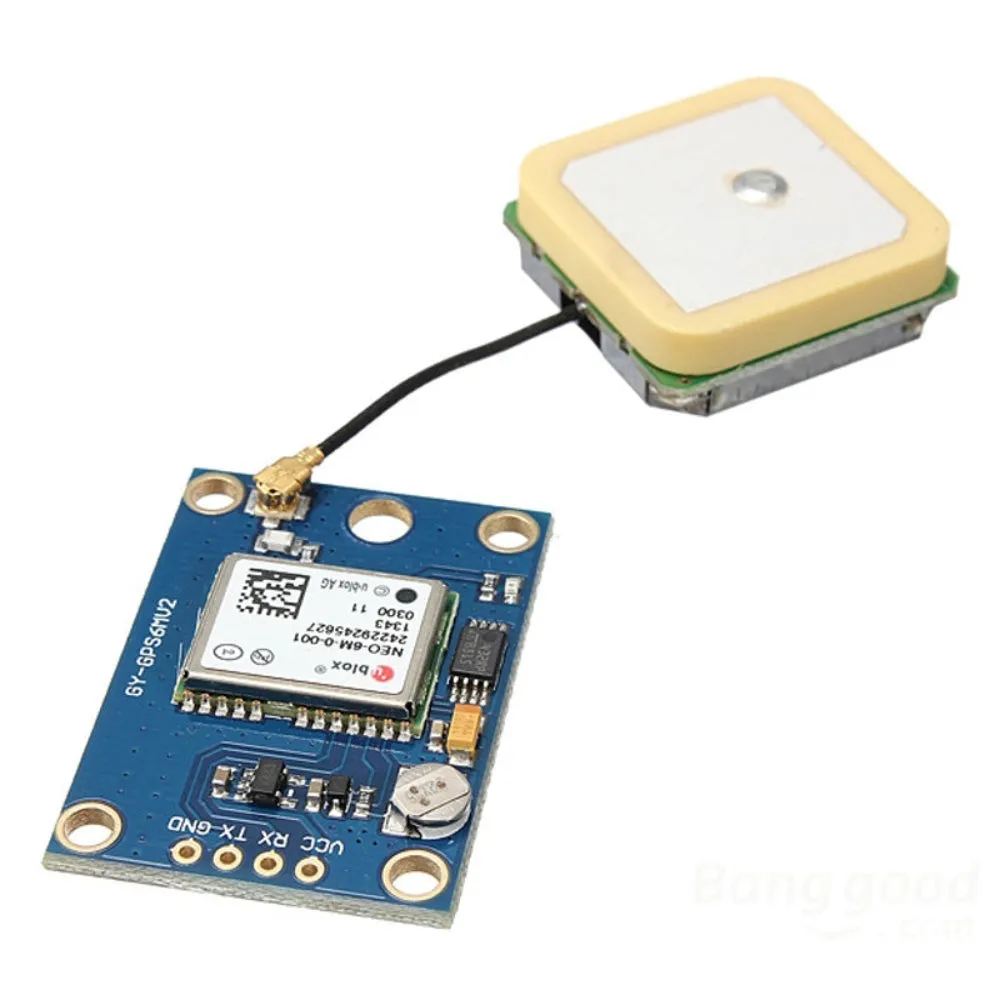

The NEO-6M GPS Module is a satellite-based positioning module designed to provide location, speed, altitude, and time information. It receives signals from GPS satellites and communicates with microcontrollers through a UART serial interface. It is suitable for navigation, tracking systems, robotics, and other location-based electronic projects.
⚙️ Key Features
Accurate satellite-based positioning.
UART serial communication interface.
Supports NMEA GPS data output.
Compatible with external GPS antennas.
Compact design for easy integration.
Provides location, speed, altitude, and time information.
Suitable for portable and embedded applications.
📦 Technical Specifications
Module: NEO-6M
GPS Chip: u-blox NEO-6M
Operating Voltage: Typically 3.3V for the GPS chip; module supply voltage depends on the board version.
Communication Interface: UART (TX/RX)
Position Accuracy: Approximately 2.5 m CEP under favorable conditions
Update Rate: Up to 5 Hz
Baud Rate: Typically 9600 bps by default
Antenna: External GPS antenna, depending on module version
Data Format: NMEA
