Green Terminal Block 2 Pins 5mm 300V/10A

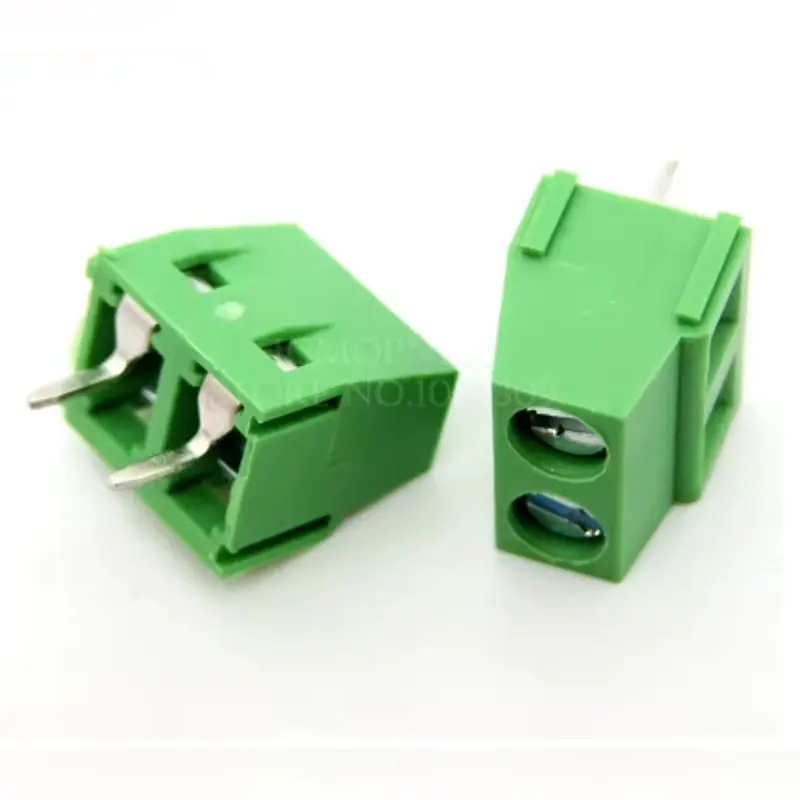

🔌 KF127‑5.0‑2P Green Terminal Block – 2‑Pin, 5 mm Pitch, 300 V/10 A

A reliable and easy-to-use 2‑pin screw terminal block designed for secure PCB-to-wire connections in electronics, electrical, and industrial applications.

⚙️ Key Specifications

• Pitch: 5.0 mm (spacing between pins)

• Current Rating: 10 A (some sources mention up to 15 A)

• Voltage Rating: 300 V (withstanding voltage up to 2000 V AC for 1 minute)

• Wire Range: 14–26 AWG (0.2–2.5 mm²)

• Housing: Flame-retardant PA66, color green

• Metal Parts: Brass (pins and clamps), tin/nickel-plated

• Operating Temp: –40 °C to +105 °C

⭐ Main Features

• Secure Screw-Clamp Terminals: Tighten wires with a slot head M2.5 screw

• PCB-Through Hole Design: Straight pins fit easily into PCB footprints

• Modular & Splicable: Can be linked with additional blocks when more pins are needed

• Robust Construction: Flame-retardant, lead-free, RoHS certified

• Wide Voltage & Current Tolerance: Suitable for various power and control circuits

📦 Ideal For

• Power supplies and control panels

• LED drivers and industrial automation modules

• Home appliances and HVAC systems

• DIY electronics and prototyping

• Secure wire connections in test & measurement setups

🔧 Usage Guide

1. Prepare Wire: Strip insulation (approx. 4–5 mm)

2. Insert into Clamp Hole

3. Tighten Screw: Torque ~0.4 Nm

4. Solder Pins onto PCB (max soldering 250 °C for 5 s)
