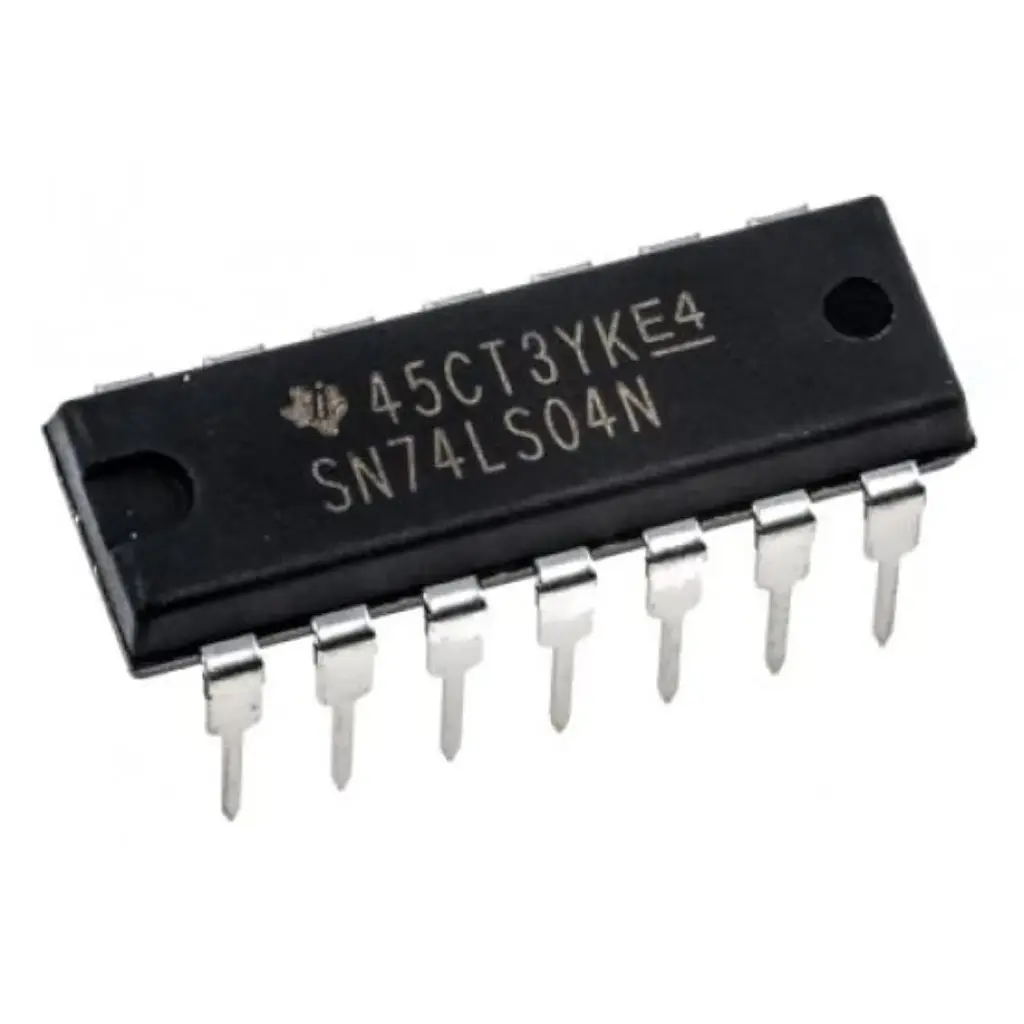

7404 IC – Hex Inverter (NOT Gate) DIP-14
🔲 7404 IC – Hex Inverter (NOT Gate) DIP-14
The 7404 IC is a digital logic chip containing six independent NOT gates (inverters). Each inverter performs the basic logic NOT function, inverting the input signal (HIGH to LOW, or LOW to HIGH). Housed in a 14-pin Dual Inline Package (DIP), it’s widely used in digital electronics, signal conditioning, and microcontroller circuits.
⚙️ Technical Specifications
| Parameter | Specification |
|---|---|
| Logic Family | TTL (74 series) |
| Function | Hex Inverter (6 × NOT Gates) |
| Package Type | DIP-14 |
| Supply Voltage (Vcc) | 4.75V to 5.25V (Typically 5V) |
| Input Voltage (VIH/VIL) | HIGH ≥ 2V, LOW ≤ 0.8V |
| Output Voltage (VOH/VOL) | HIGH ≥ 2.4V, LOW ≤ 0.4V |
| Propagation Delay | ~10 ns |
| Operating Temperature | -55°C to +125°C |
📌 Pin Configuration (DIP-14)
| Pin | Function | Pin | Function |
|---|---|---|---|
| 1 | Inverter 1 In | 14 | Vcc (Power) |
| 2 | Inverter 1 Out | 13 | Inverter 6 Out |
| 3 | Inverter 2 In | 12 | Inverter 6 In |
| 4 | Inverter 2 Out | 11 | Inverter 5 Out |
| 5 | Inverter 3 In | 10 | Inverter 5 In |
| 6 | Inverter 3 Out | 9 | Inverter 4 Out |
| 7 | GND | 8 | Inverter 4 In |
🧠 Logic Function – NOT Gate
| Input (A) | Output (Y = NOT A) |
|---|---|
| 0 | 1 |
| 1 | 0 |
🛠️ Applications
Digital logic circuits
Signal inverting and buffering
Pulse shaping and timing circuits
Microcontroller logic level adjustments
Educational logic kits
