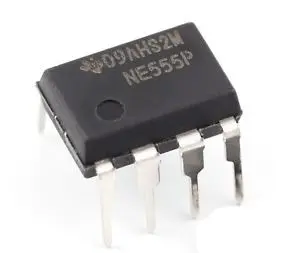

NE555 Timer IC – Versatile Precision Timer (DIP-8)

⏱️ NE555 Timer IC – Versatile Precision Timer (DIP-8)

The NE555 Timer IC is one of the most widely used integrated circuits in electronics. It can operate in astable, monostable, and bistable modes to produce timing delays, oscillations, or act as a flip-flop. Perfect for both beginners and advanced users, the NE555 is ideal for flashing LEDs, PWM generation, tone generation, delay timers, and frequency circuits.

⚙️ Technical Specifications

✅ Features

• ⏱️ Precision timing from microseconds to hours

• 🔁 Generates square waves (PWM, clock pulses)

• 🛠️ Easy to use in astable (oscillator) and monostable (one-shot) configurations

• ⚡ Can source or sink high output current (up to 200 mA)

• 🧰 Excellent for Arduino, DIY timers, buzzers, relays, etc.

🧠 Common Applications

• 🔔 Delay timers and one-shot pulse generators

• 💡 LED blinkers and flashing lights

• 🔊 Tone generators and metronomes

• 🔁 PWM motor speed control

• ⏳ Time delay relays

• 🔌 Oscillators and clock circuits

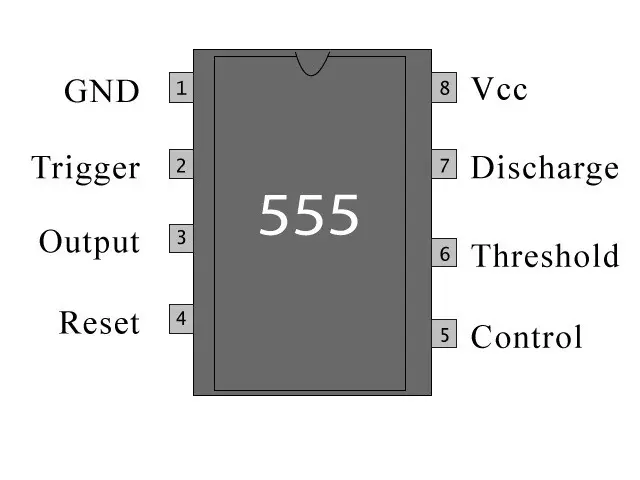

📎 Pinout Diagram (DIP-8)

pgsql
CopyEdit
     _______
    |       |
 1 -| GND   | 8 - VCC
 2 -| TRIG  | 7 - DISCH
 3 -| OUT   | 6 - THRES
 4 -| RESET | 5 - CTRL
    |_______|

🧪 Example Astable Circuit (LED Blinker)

Parts Needed:

• 1x NE555 IC

• 1x 10kΩ resistor

• 1x 1kΩ resistor

• 1x 100µF capacitor

• 1x LED

• 1x 220Ω resistor (for LED)

Timing Formula:

T = 1.44 * (R1 + 2 * R2) * C
