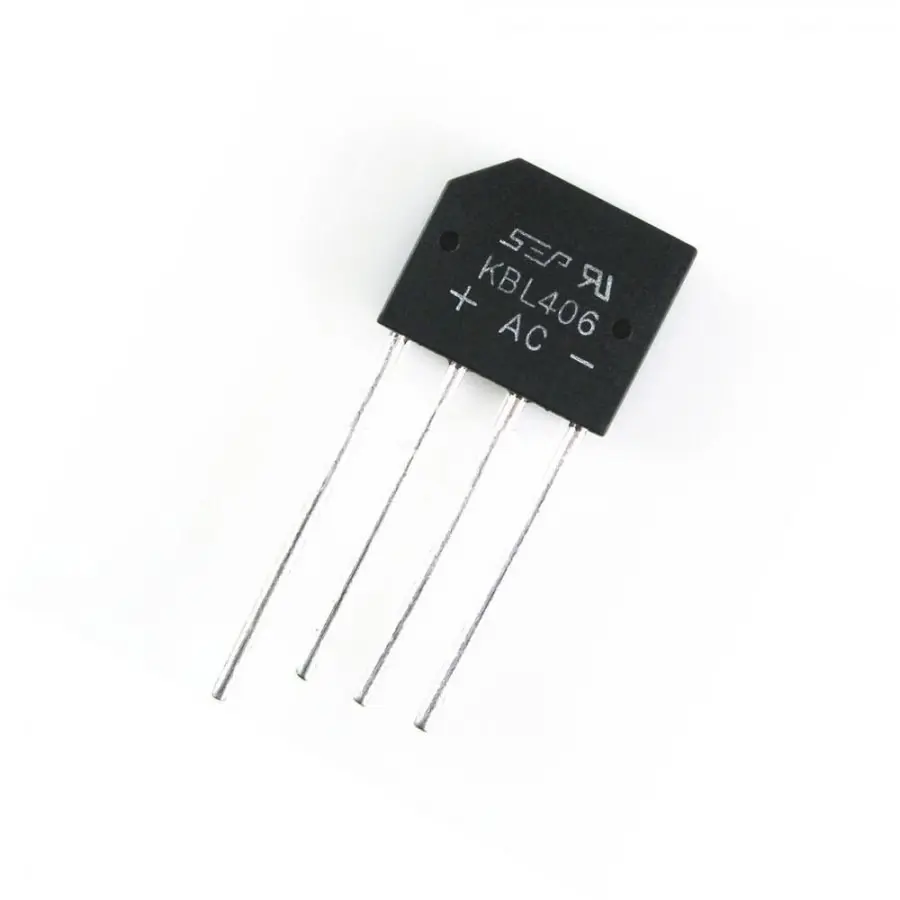

KBL406 Bridge Rectifier Single-Phase 4A 600V
Features:
- Bridge Rectifier: The KBL406 is a bridge rectifier, meaning it uses four diodes arranged in a bridge configuration to convert the AC input voltage into DC output.
- Compact Design: It’s compact, making it ideal for small to medium power applications such as power supplies, battery chargers, and other power electronics.
- High Efficiency: It ensures high conversion efficiency by rectifying both halves of the AC cycle, unlike a half-wave rectifier.
Pin Assignments:
Specifications:
| Parameter | Symbol | KBL406 | unit |
| Maximum repetitive peak reverse voltage | VRRM | 600 | V |
| Maximum RMS bridge input voltage | VRMS | 420 | V |
| Maximum DC blocking voltage | VDC | 600 | V |
| Maximum average forward rectified output current at TA=50 C | IF(AV) | 4.0 | A |
| Peak forward surge current single sine-wave superimposed on rated load (JEDEC Method) | IFSM | 200 | A |
| Rating for fusing ( t<8.3ms) | I 2 t | 166 | A2sec |
| Typical thermal resistance per element (1) | ReJA | 10.0 | °C/W |
| Operating junction and storage temperature range | TJ, TSTG | -55 to + 150 | °C |
