Diode 1N4007 – 1A 1000V

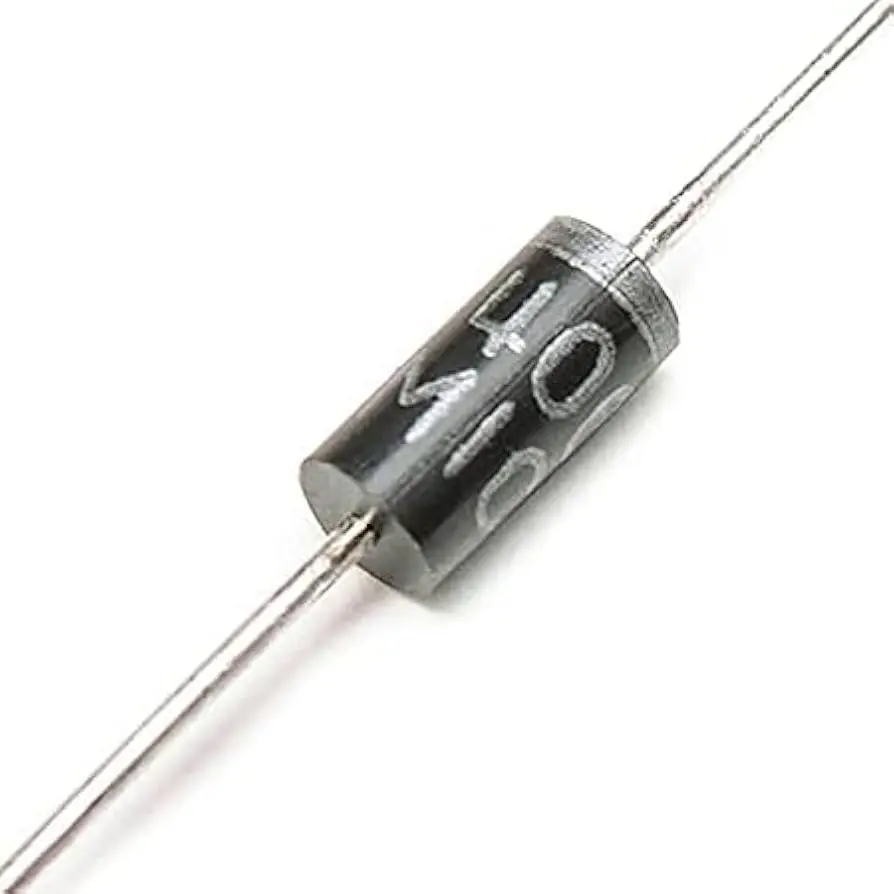

🔌 1N4007 Rectifier Diode – 1A 1000V (DO-41)

The 1N4007 is one of the most widely used general-purpose rectifier diodes, ideal for converting AC to DC in low-power electronic circuits. It handles up to 1 ampere of continuous current and can withstand reverse voltages up to 1000V.

⚙️ Specifications:

• Model: 1N4007

• Maximum Repetitive Reverse Voltage (VRRM): 1000V

• Average Rectified Current (IO): 1A

• Forward Voltage Drop (VF): ~1.1V @ 1A

• Peak Surge Current: 30A (8.3ms single half sine-wave)

• Package Type: DO-41

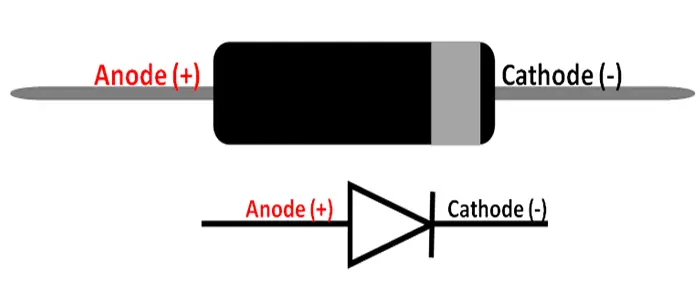

• Polarity Mark: Cathode band (silver/white ring)

⭐ Features:

• High-voltage tolerance

• Low cost and widely available

• Suitable for through-hole PCB mounting

• Reliable for everyday rectification tasks

📦 Applications:

• AC to DC conversion

• Power supplies

• Reverse polarity protection

• Hobby and DIY circuits

• General-purpose rectifiers
