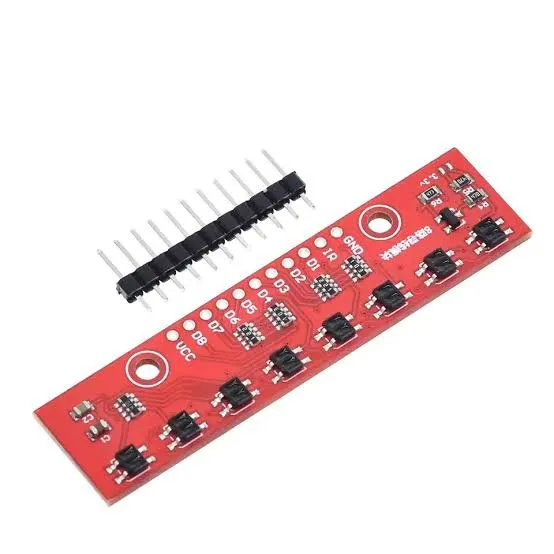

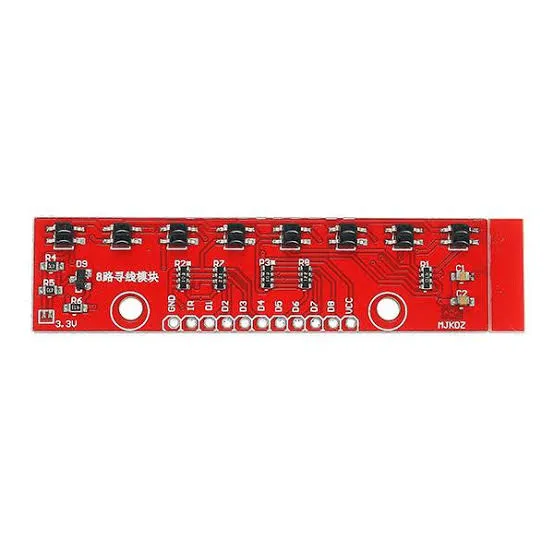

Line Follower Sensor Tracking 8 channel
📝 Overview
The 8-Channel Line Follower Sensor Module is an infrared (IR) tracking sensor array designed for line-following robots and autonomous navigation. It consists of 8 independent IR sensors that detect the contrast between black and white surfaces, providing fast and accurate line detection. The module is compatible with Arduino, ESP32, Raspberry Pi, STM32, and other microcontroller platforms.
⚙️ Key Features
-
8 independent IR tracking sensors
-
Detects black and white lines with high accuracy
-
Adjustable sensitivity via onboard potentiometers
-
Digital outputs for each sensor
-
Fast response time
-
Onboard status LEDs for each channel
-
Compatible with Arduino, ESP32, Raspberry Pi, and STM32
📦 Technical Specifications
|
| Product Type | Line Follower Sensor Array |
| Number of Channels | 8 |
| Operating Voltage | 3.3V – 5V DC |
| Sensor Type | Infrared (IR) Reflective Sensors |
| Output Type | Digital (8 Outputs) |
| Detection Distance | 2 – 15 mm (Adjustable) |
| Sensitivity Adjustment | Onboard Potentiometers |
| Indicator LEDs | Yes |
| Operating Temperature | -20°C to +70°C |
📌 Pin Configuration
|
| VCC | 3.3V – 5V Power Supply |
| GND | Ground |
| OUT1 – OUT8 | Digital Outputs for Each Sensor |
