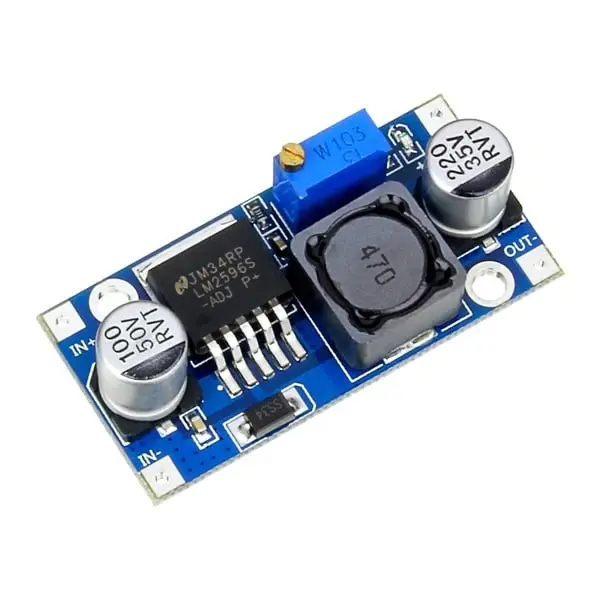

LM2596S DC‑DC Step‑Down (Buck) Converter Module – 3 A
LM2596S DC‑DC Step‑Down (Buck) Converter Module – 3 A Adjustable Output
A compact and efficient LM2596S-based buck converter designed to step down voltage with up to 3 A current. Ideal for powering Arduino, Raspberry Pi, motors, LEDs, and battery charging projects.
📊 Technical Specifications
| Parameter | Specification |
|---|---|
| Input Voltage Range (VIN) | 3 V – 40 V (recommended VIN > VOUT + 2 V) m.youtube.com+15ti.com+15codrey.com+15amazon.com+1onsemi.com+1 |
| Output Voltage (VOUT) | Adjustable from 1.23 V – 37 V |
| Output Current | Typically 2 A continuous, up to 3 A peak (heat-sink recommended) |
| Switching Frequency | 150 kHz fixed |
| Efficiency | Up to ~93 % |
| Standby Current | ~80 µA |
| Protections | Over-temperature shutdown, current limiting, ON/OFF shutdown pin |
| Dimensions | ~43×21×14 mm (including potentiometer) |
| Onboard Adjustments | Multi-turn potentiometer for precise voltage tweaking; ON/OFF pin control |
🔌 Connection Guide
IN+ → Power source (3–40 V)
IN− / GND → Power ground
OUT+ → Regulated output
OUT− / GND → Output ground (common with input)
