📝 Overview

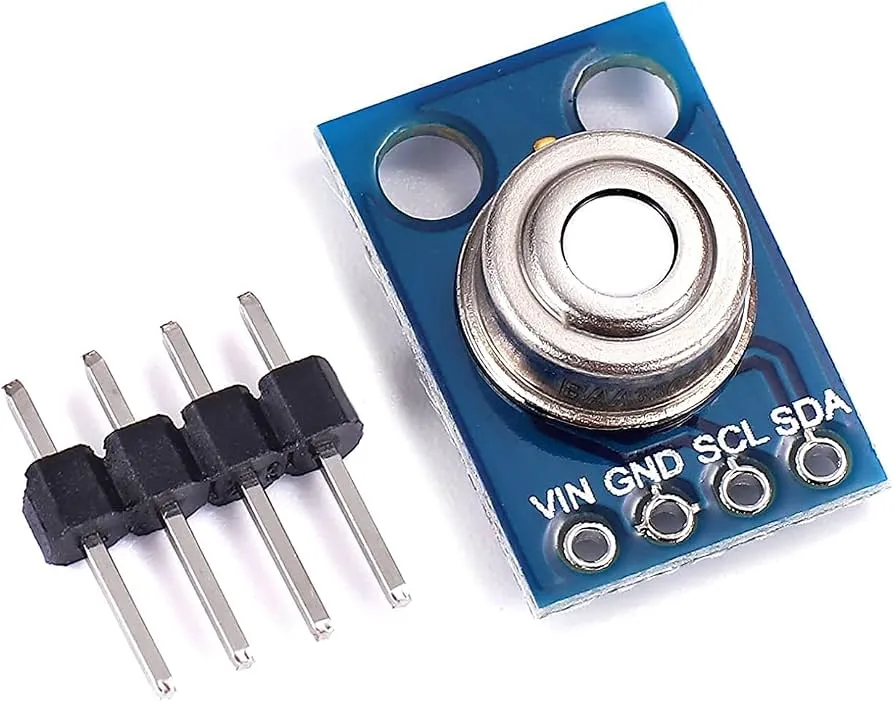

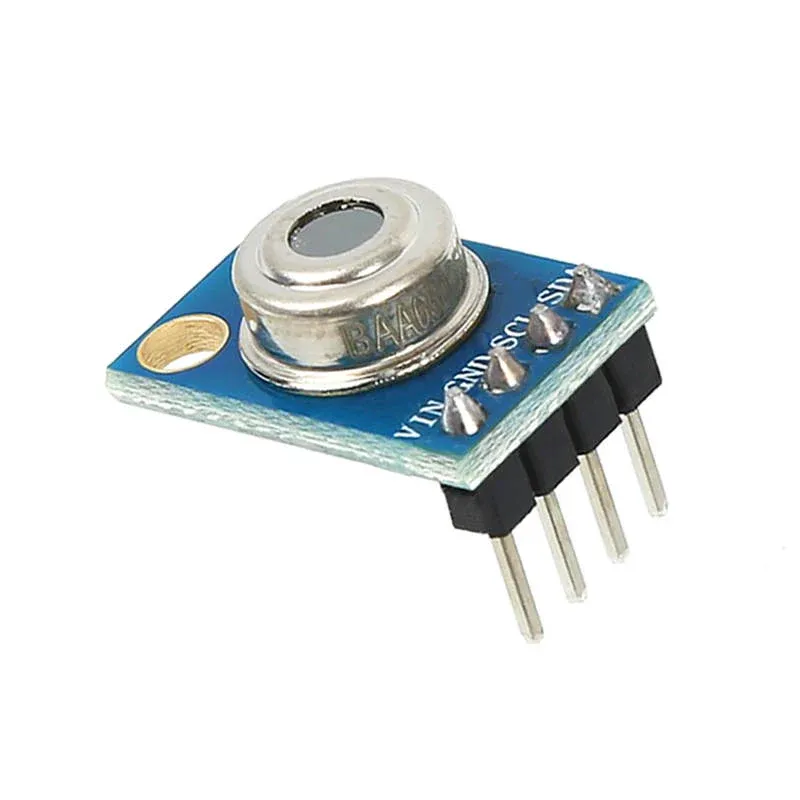

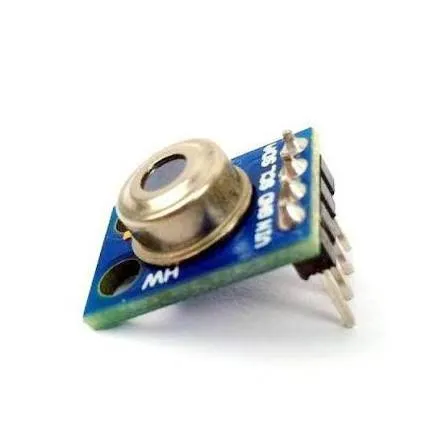

The MLX90614 Infrared Temperature Sensor is a non-contact temperature measurement sensor that detects the temperature of objects using infrared radiation. It allows temperature readings without direct physical contact, making it suitable for electronics projects, temperature monitoring, and industrial applications.
⚙️ Key Features
Non-contact temperature measurement.
Based on the MLX90614 infrared sensor.
Digital output via I2C communication.
Measures object and ambient temperature.
Compact design for easy integration.
Suitable for temperature monitoring and automation projects.
📦 Technical Specifications
Parameter | Value |
|---|
Sensor Model | MLX90614 |
Sensor Type | Infrared Thermometer |
Supply Voltage | 3.3V–5V DC (module dependent) |

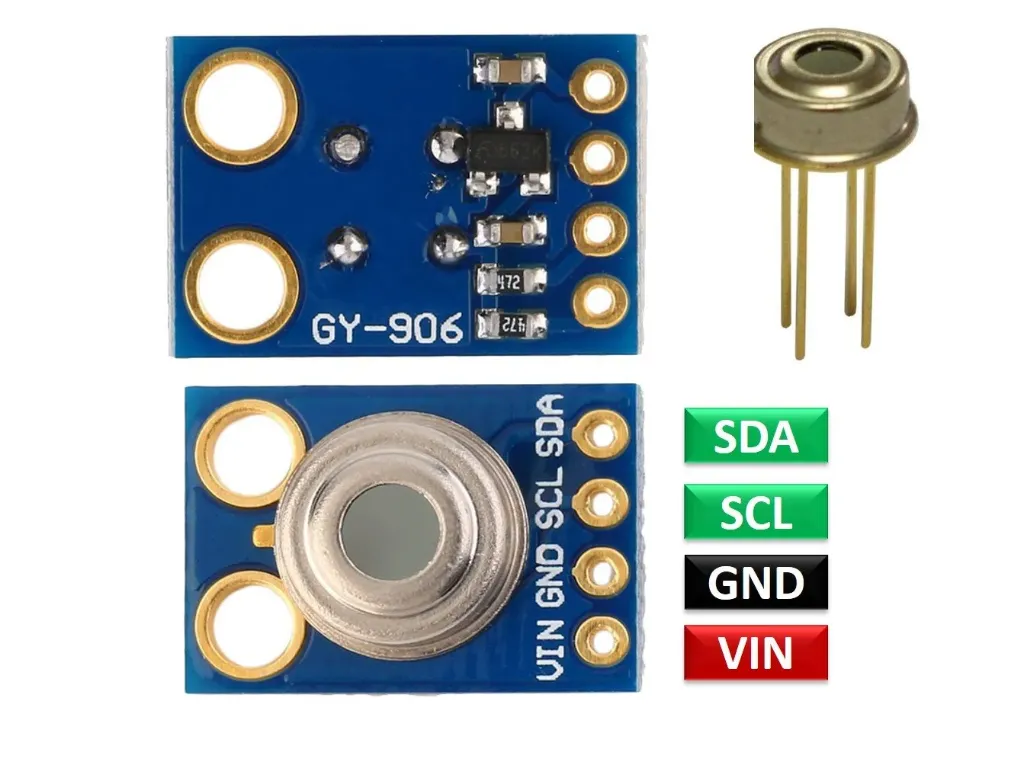

Communication | I2C (SDA, SCL) |
Ambient Temperature Range | -40°C to +125°C |
Object Temperature Range | -70°C to +380°C |
Typical Accuracy | ±0.5°C around room temperature |
Measurement Method | Non-contact infrared |
📦 Package Includes
- 1 × MLX90614 Infrared Temperature Sensor Module
