⚙️ Mini PWM DC Motor Speed Controller 1803BK – 2A
📝 Overview

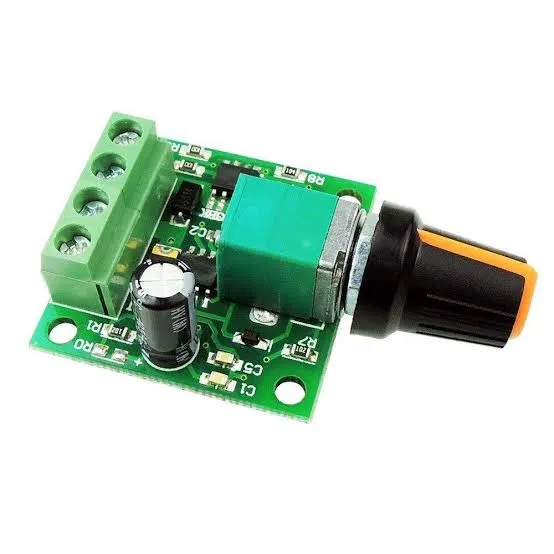

The 1803BK Mini PWM DC Motor Speed Controller is a compact module designed to control the speed of low-voltage DC motors using PWM (Pulse Width Modulation). The motor speed can be adjusted smoothly from 0% to 100% using the onboard potentiometer. �
Manuals+ +1
⚙️ Key Features
PWM speed control for DC motors
Adjustable speed from 0% to 100%
Wide operating voltage range
Maximum continuous current: 2A
Built-in 2A self-recovery fuse
Power indicator LED
Compact and easy to install
Potentiometer with integrated ON/OFF switch
No programming required �
Manuals+ +1
📦 Technical Specifications
Parameter
Value
Model
1803BK
Input Voltage
1.8V – 15V DC
Maximum Continuous Current
2A
Maximum Output Power
30W
PWM Duty Cycle
0% – 100%
Control
Potentiometer
Protection
2A Self-Recovery Fuse
Dimensions
Approx. 32 × 32 × 15 mm
Motor Type
Brushed DC Motor
