On/Off Self-Lock 12mm 2pin - Green

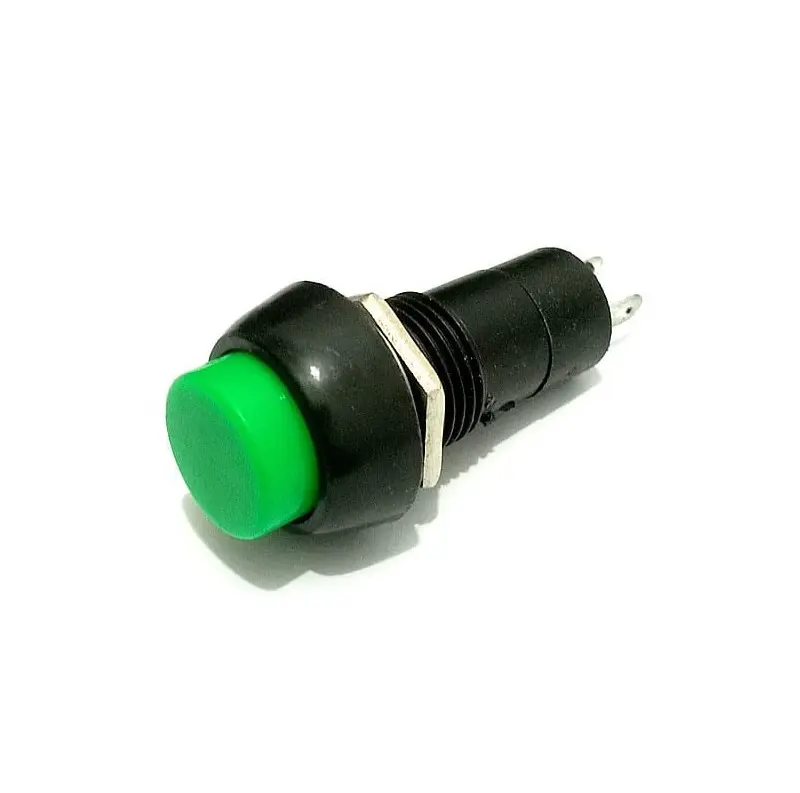

On/Off Self-Lock Push Button – 12mm, 2-Pin (Green)
Overview:
This 12mm self-locking push button switch (also known as a latching switch) is a compact and reliable component ideal for toggling power or modes in your electronic projects. Press once to lock ON, press again to release OFF — perfect for power toggles, mode selectors, and control panels.
With a bright green actuator, this button offers excellent visibility and tactile feedback. It features a durable 2-pin design, making it easy to use with Arduino, ESP32, Raspberry Pi, or any low-voltage control circuit.
Key Features:
Action Type: Self-locking (latching)
Function: Press to toggle ON → press again to OFF
Pins: 2 (Normally Open, latching)
Button Color: Green
Mounting Hole: Fits 12mm diameter
Panel mount design with plastic threaded ring
Durable, compact, and easy to install
Ideal for low-voltage DC projects (up to 12V)
Technical Specifications:
| Parameter | Value |
|---|---|
| Switch Type | Push Button (Self-locking) |
| Operation Mode | Latching (Toggle ON/OFF) |
| Contact Type | Normally Open (NO) |
| Number of Pins | 2 |
| Rated Voltage | 3V – 12V DC (recommended) |
| Max Current | 1A |
| Mounting Hole Diameter | 12mm |
| Button Color | Green |
| Switch Body Material | Plastic |
| Operating Life | >10,000 cycles |
How It Works:
Press → circuit closes (ON) and stays locked
Press again → circuit opens (OFF)
Great for toggling devices like lights, relays, motors, etc.
Wiring Example (Arduino):
| Switch Pin | Connection |
|---|---|
| Pin 1 | 5V or VCC (via resistor if needed) |
| Pin 2 | Digital input (e.g., D2) |
💡 Use INPUT_PULLUP in code or add a pull-down resistor externally.
