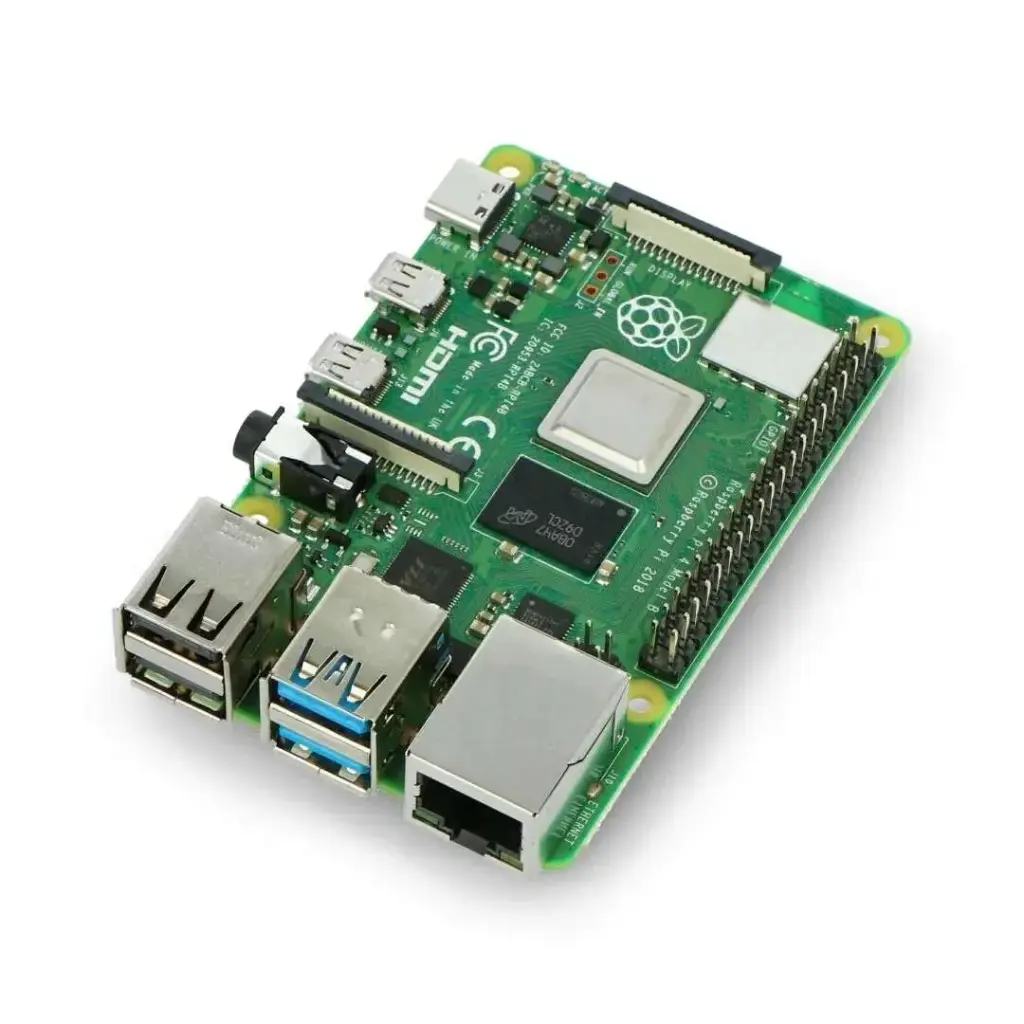

Raspberry Pi 4 Computer Model B – 4GB RAM – Made in UK
Raspberry Pi 4 Model B – 4 GB RAM (Made in UK)
Overview:
The Raspberry Pi 4 Model B is a powerful single-board computer featuring a 64‑bit quad‑core 1.5 GHz ARM Cortex‑A72 CPU, 4 GB LPDDR4 RAM, and a UK-manufactured board quality. It's capable of desktop-level tasks, multi-display setups, IoT, and embedded systems, running Raspberry Pi OS or other Linux distributions.
Key Features:
4 GB LPDDR4‑3200 SDRAM
Dual Micro‑HDMI outputs (up to 4Kp60)
Gigabit Ethernet and dual-band 802.11ac Wi‑Fi, Bluetooth 5.0/BLE
2 × USB 3.0 and 2 × USB 2.0 ports
40‑pin GPIO header (backward compatible)
Power via USB‑C (5 V, 3 A); supports PoE with a HAT
Maintains familiar form factor and pinout of earlier Pi models
Technical Specifications:
Parameter | Value |
---|---|
SoC | Broadcom BCM2711, Quad-core Cortex-A72 @ 1.5 GHz |
GPU | VideoCore VI, 3D, H.265 4Kp60 video decode |
RAM | 4 GB LPDDR4‑3200 |
Storage | microSD card slot |
Networking | Gigabit Ethernet, 802.11ac Wi‑Fi, Bluetooth 5.0 |
USB | 2 × USB 3.0, 2 × USB 2.0 |
Video Outputs | 2 × Micro‑HDMI (4Kp60 support) |
GPIO | 40 pins (I²C, UART, SPI, PWM, etc.) |
Power Input | USB‑C 5 V, min. 3 A; GPIO 5 V also possible |
Size | 85 × 56 mm |
Manufacturer Origin | UK-made PCB |
Getting Started:
Insert a microSD card with Raspberry Pi OS (use Raspberry Pi Imager).
Connect power, micro‑HDMI monitor(s), keyboard, and Ethernet (if needed).
Boot up and follow on-screen guidance for setup, Wi‑Fi, and updates
Desktop PC replacement (office, web, media)
Dual‑screen productivity and digital signage
Home server, VPN, NAS, or network controller
IoT gateway, robotics, and automation platforms
Coding, education, prototyping, and maker projects
Multimedia and gaming via RetroPie, Kodi, etc.
Resources:
📄 Datasheet PDF:
Raspberry Pi 4 Model B Official Datasheet – Revision 1.1 projects-raspberry.com+1kitronik.co.uk+1raspberrypi.com+2raspberrypi.com+2community.element14.com+2datasheets.raspberrypi.com🎥 YouTube Tutorial:
“Raspberry Pi 4 Setup Guide” — covers power, OS installation, Wi‑Fi, and dual-display configuration. amazon.com+14youtube.com+14raspberrypi.com+14
