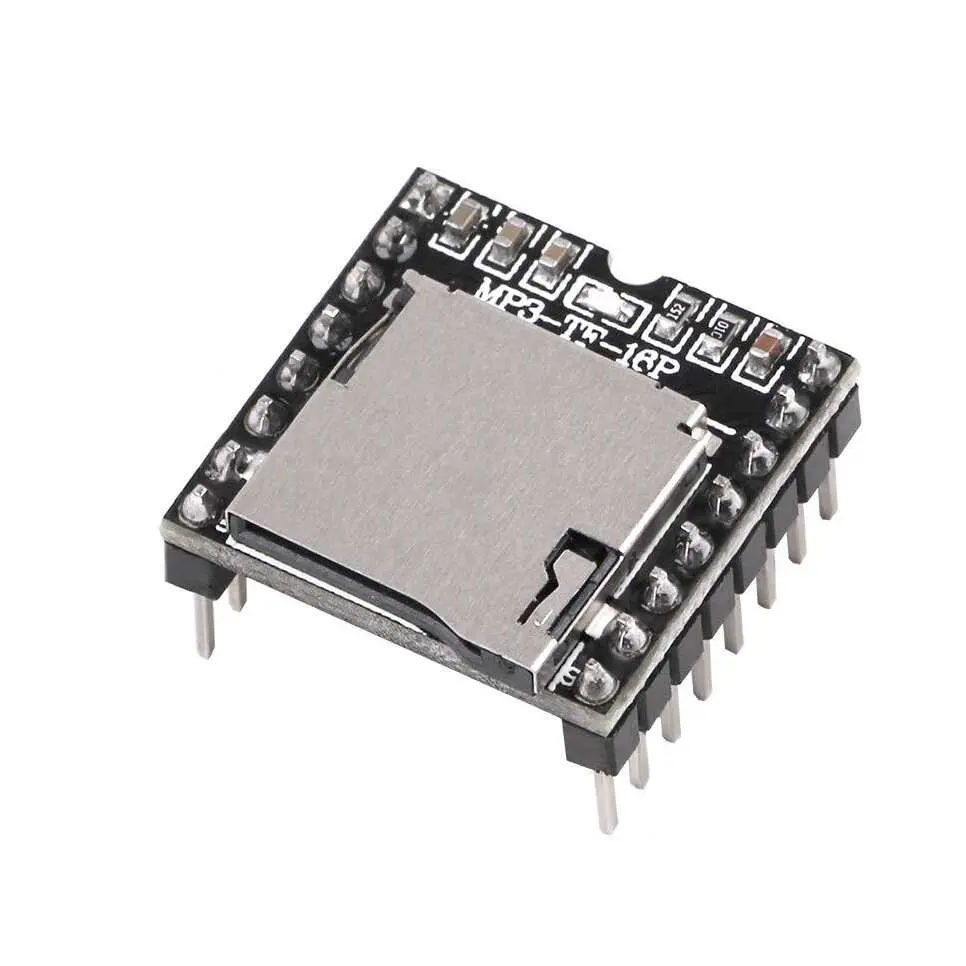

Mini MP3 Player Module For Arduino

Mini MP3 Player Module for Arduino – DFPlayer Compatible

Overview:

The Mini MP3 Player Module is a compact and low-cost MP3 player solution with an onboard microSD card slot and speaker driver. It can play audio files stored on a microSD card (up to 32GB) and is ideal for adding sound effects, voice feedback, or music to Arduino and other microcontroller projects. The module supports both serial control and standalone operation.

Key Features:

• Built-in audio decoding chip: Supports MP3, WAV, and WMA formats

• Supports microSD cards: FAT16/FAT32 up to 32GB

• Built-in DAC and amplifier: Can directly drive an 8Ω/3W speaker

• Serial communication interface: Compatible with Arduino and other MCU boards

• Low power consumption, compact size

Technical Specifications:

Pinout:

Wiring with Arduino Uno:

💡 Note: Use SoftwareSerial on pins 10 & 11 in code.

Sample Code (Arduino):

cpp
CopyEdit
#include <SoftwareSerial.h>
#include <DFRobotDFPlayerMini.h>

SoftwareSerial mySerial(10, 11); // RX, TX
DFRobotDFPlayerMini myDFPlayer;

void setup() {
  mySerial.begin(9600);
  Serial.begin(9600);

  if (!myDFPlayer.begin(mySerial)) {
    Serial.println("Unable to begin DFPlayer.");
    while (true);
  }

  myDFPlayer.volume(20);  // Volume range: 0-30
  myDFPlayer.play(1);     // Play first track
}

void loop() {}

Applications:

• Talking robots and voice assistants

• Interactive art installations

• DIY MP3 players

• Sound effects in games, toys, exhibits

Resources:

• 📹 Video Tutorial: DFPlayer Mini with Arduino

• 🧰 Arduino Library on GitHub: DFRobotDFPlayerMini

• 📘 Library Installation Guide: How to Install Arduino Libraries

• 📄 Datasheet PDF: Download DFPlayer Datasheet
