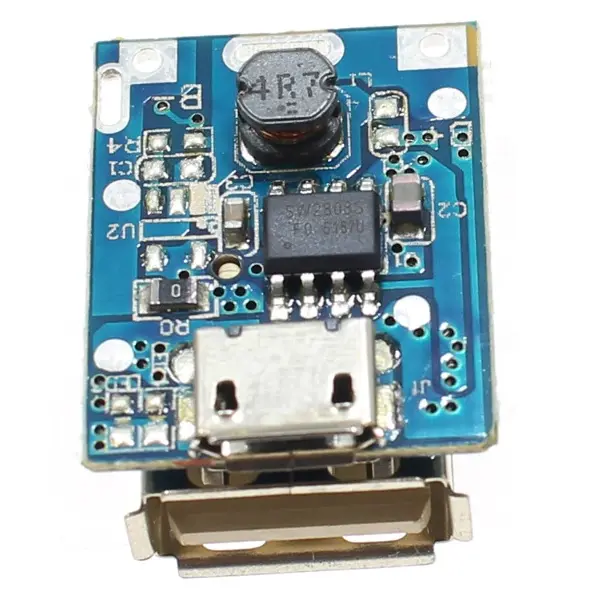

POWER BANK MODULE T6845-C
🔋 Power Bank Module T6845-C
Description:
The T6845-C Power Bank Module is a high-performance charging and discharging control board used to build custom power banks. It includes over-charge, over-discharge, and short-circuit protection, ensuring safe and efficient battery management. This module supports both charging of Li-ion cells and USB output to charge external devices.
Key Features:
Model: T6845-C
Supports 3.7V Li-ion batteries
Built-in charging and discharging circuit
Integrated protection against overcharge, over-discharge, and short circuit

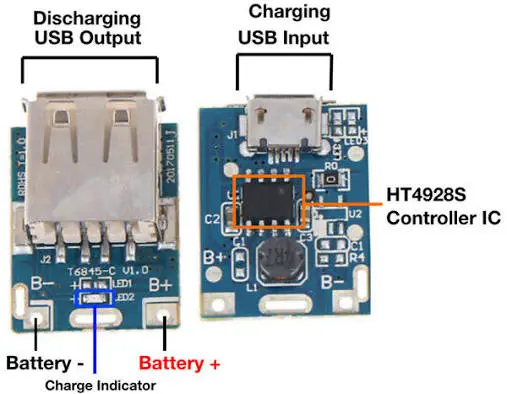

Dual USB output ports for powering two devices
Micro-USB input for charging
LED indicators for charging status
Compact and easy to integrate into DIY power banks
Specifications:
Input Voltage: 5V (Micro-USB)
Output Voltage: 5V
Output Current: up to 2A
Battery Type: 3.7V Li-ion or Li-Po
Dimensions: approx. 60mm × 21mm
