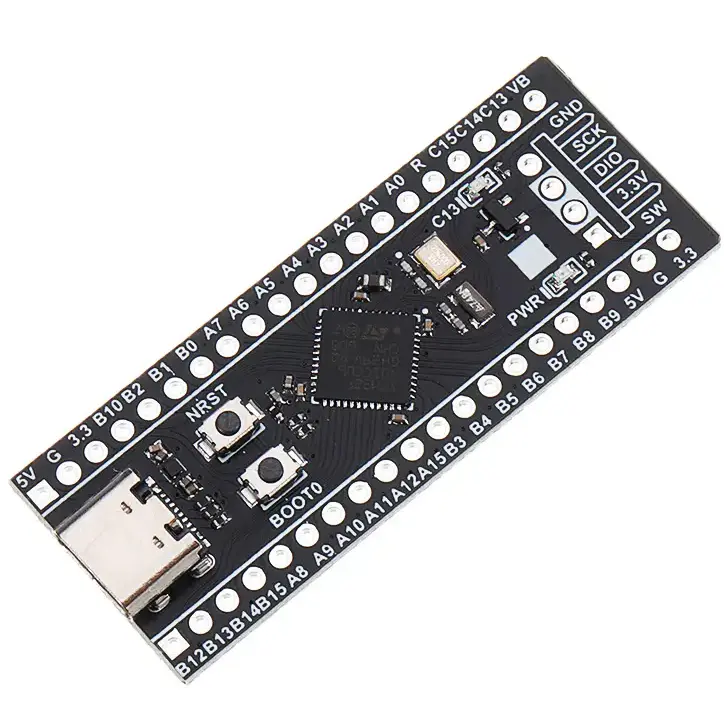

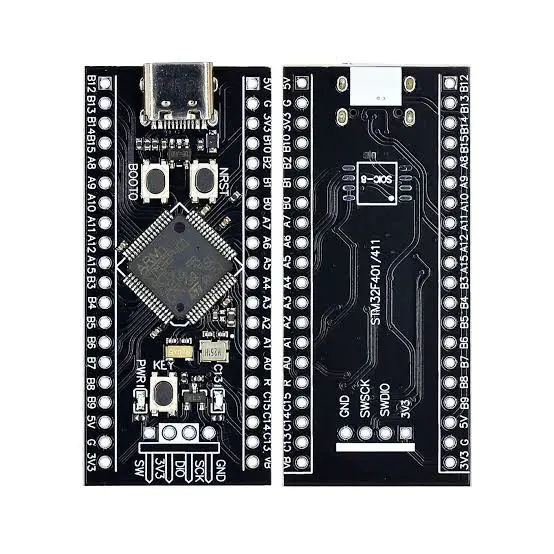

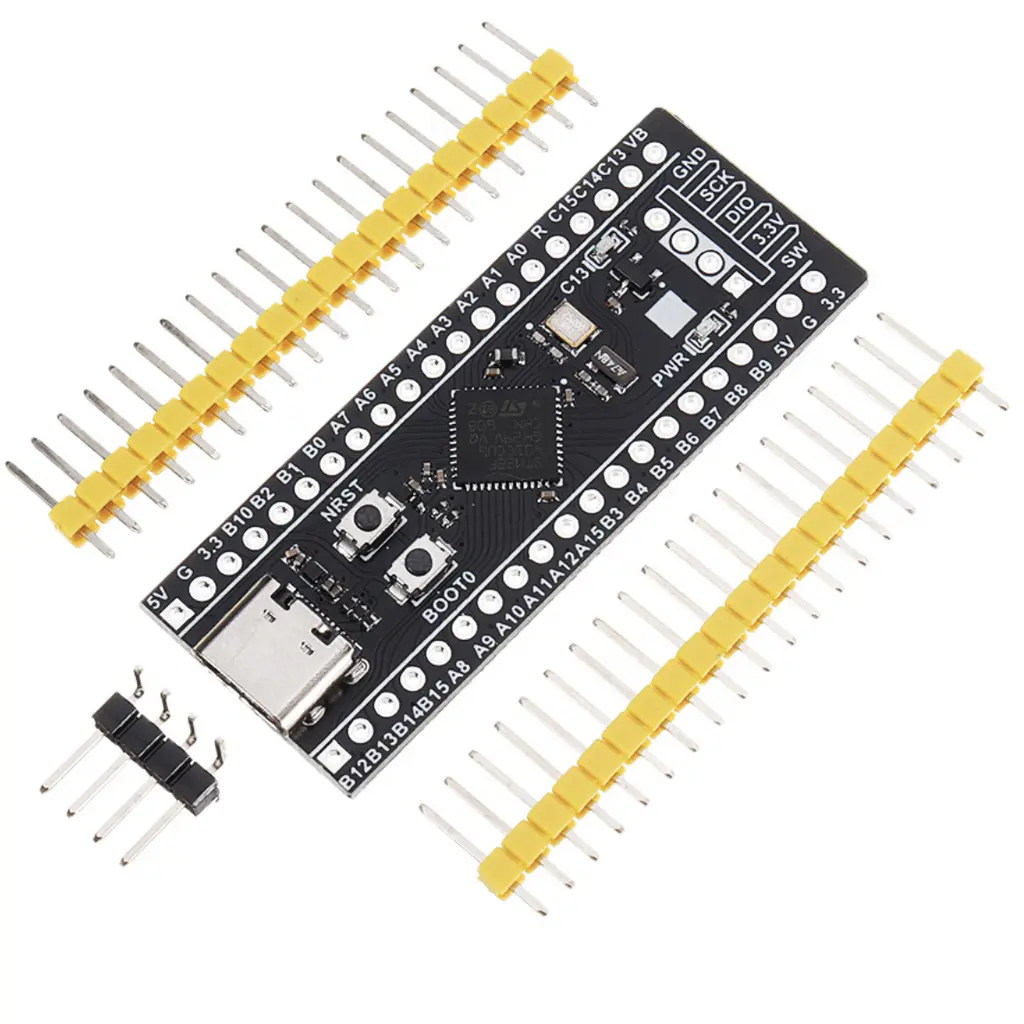

STM32 Development Board (The Black Pill)
STM32F401RCTB - STM32 Development Board (The Black Pill)
The STM32F401RCTB Black Pill is a high-performance development board based on the powerful STM32F4 series microcontroller from STMicroelectronics. It features an ARM Cortex-M4 core running at up to 84MHz with Floating Point Unit (FPU), making it ideal for advanced embedded systems, robotics, IoT, and real-time control applications.
🔹 Key Features:
Microcontroller: STM32F401RCTB (ARM Cortex-M4, 32-bit)
Clock Speed: Up to 84MHz
Flash Memory: 256KB
SRAM: 64KB
Operating Voltage: 3.3V
Micro USB connector
Multiple GPIO pins
Interfaces: USART, SPI, I2C, I2S, CAN, USB OTG
PWM, ADC, Timers
Onboard 8MHz crystal oscillator
Compact Black Pill design
🔹 Why Choose STM32F401 Black Pill?
High processing power for complex projects
Suitable for robotics, motor control, smart systems, and IoT
Compatible with STM32CubeIDE, Keil, and Arduino (via STM32 core)
Cost-effective alternative to larger STM32 development boards
