DIP switch 4-way pin

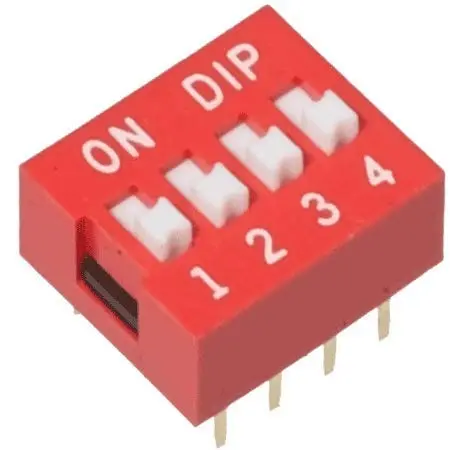

🔘 DIP Switch 4-Way – 4-Position, 4-Pin (Slide Type)

The 4-way DIP switch offers a simple, low-profile solution for user-selectable configuration settings in digital circuits. Each of the 4 switches can independently toggle between ON and OFF, making it ideal for address settings, logic input, and function selection.

⚙️ Specifications:

• Type: DIP Switch, 4-way

• Number of Switches: 4 (independent)

• Contact Configuration: SPST (Single Pole Single Throw)

• Mounting Type: Through-hole

• Pin Count: 8 pins (2 per switch)

• Pin Pitch: 2.54mm (0.1 inch) standard

• Switch Type: Slide switch

• Current Rating: ~25mA @ 24V DC

• Dimensions: Compact DIP-4 form

• Color: Typically red body with white toggles

⭐ Features:

• 4 independent switches in one compact package

• Clear ON/OFF markings for easy configuration

• Ideal for selecting modes, addresses, or features

• Fits directly into breadboards or PCBs

• Durable design for long-term switching use
