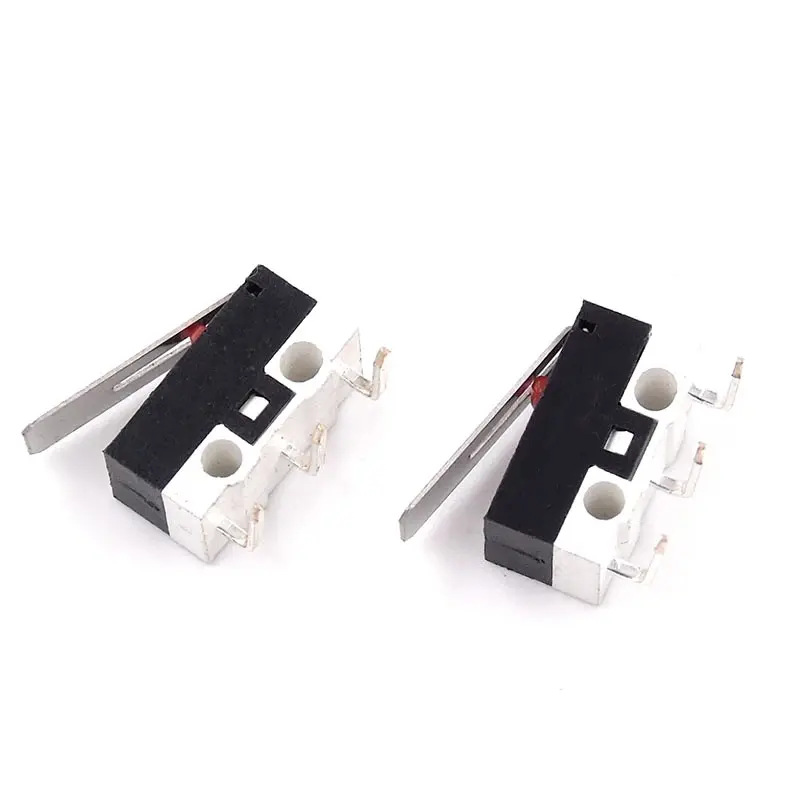

Limit Switch SPDT Micro Right Angle 1A 3Pin

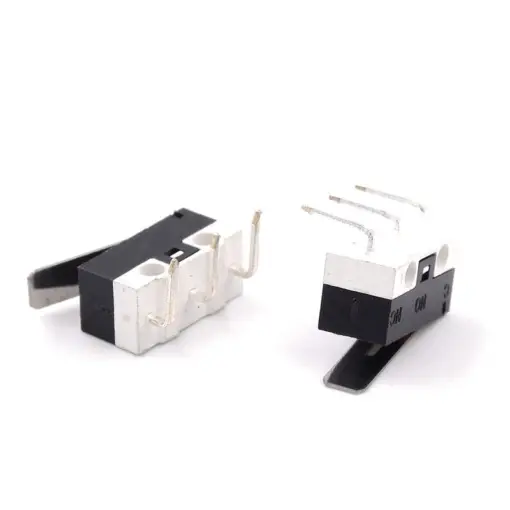

🖲️ SPDT Micro Limit Switch – Right Angle, 125V 1A, 3-Pin
The SPDT Micro Limit Switch (Right Angle type) is a compact, precision switch used for mechanical limit detection, position sensing, and end-stop control in a wide variety of applications. Its 3-pin SPDT (Single Pole Double Throw) configuration allows for both normally open (NO) and normally closed (NC) output, making it highly flexible for automation and embedded control systems.
⚙️ Technical Specifications
| Parameter | Specification |
|---|---|
| Type | SPDT (Single Pole Double Throw) |
| Rated Voltage | 125V AC |
| Rated Current | 1A max |
| Pins | 3 (Common, NO, NC) |
| Actuator Type | Lever arm or metal leaf (depends on model) |
| Mounting Style | Right Angle (horizontal PCB mount) |
| Contact Resistance | ≤ 100 mΩ |
| Operating Force | ~100–150gf (depends on actuator) |
| Insulation Resistance | ≥ 100 MΩ at 500VDC |
| Lifespan | Up to 1,000,000 cycles |
📌 Pinout
| Pin | Function |
|---|---|
| COM | Common terminal |
| NO | Normally Open |
| NC | Normally Closed |
When the lever is not pressed, NC is connected to COM. When pressed, NO is connected to COM.
🛠️ Applications
3D printers and CNC machine end stops
Robotics (arm or wheel position detection)
Elevator and door limit detection
Smart home devices and DIY electronics
Industrial automation systems
📦 Included
1x SPDT Limit Switch (Right Angle, 3-pin)
✅ Ready for PCB soldering or wire connection
