Mini Push Button 4 Pins

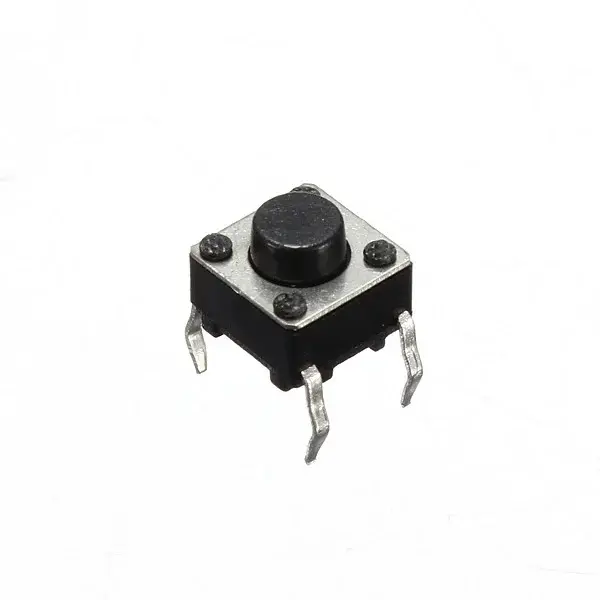

π Mini Push Button Switch β 4-Pin Tactile (6Γ6mm)
The 4-Pin Mini Push Button Switch is a compact and highly reliable momentary tactile switch widely used in Arduino projects, DIY electronics, and embedded systems. It fits standard 6Γ6mm footprint and provides a crisp tactile click when pressed. Commonly used for reset, menu, or user input buttons.
βοΈ Technical Specifications
| Parameter | Specification |
|---|---|
| Type | Tactile Push Button (Momentary) |
| Pins | 4 pins (2 internally connected pairs) |
| Mount Type | Through-Hole (THT) |
| Dimensions | 6mm Γ 6mm (base), ~5mm to 13mm height |
| Operating Voltage | Max 12V DC |
| Max Current | ~50mA β 500mA (ideal for logic level) |
| Contact Resistance | β€ 100 mΞ© |
| Life Cycle | ~100,000 operations |
β Features
π Momentary action β ON only while pressed
π§° 4-pin design ensures easy placement on breadboards or PCBs
π Use in logic-level input systems like Arduino, ESP32, STM32, etc.
π§ͺ Tactile feedback for accurate user response
π οΈ Commonly used in menus, resets, controls, or settings buttons
π How Pins Work
Diagonally opposite pins are connected internally
Can be used as a 2-pin switch by using any one pair of diagonals
