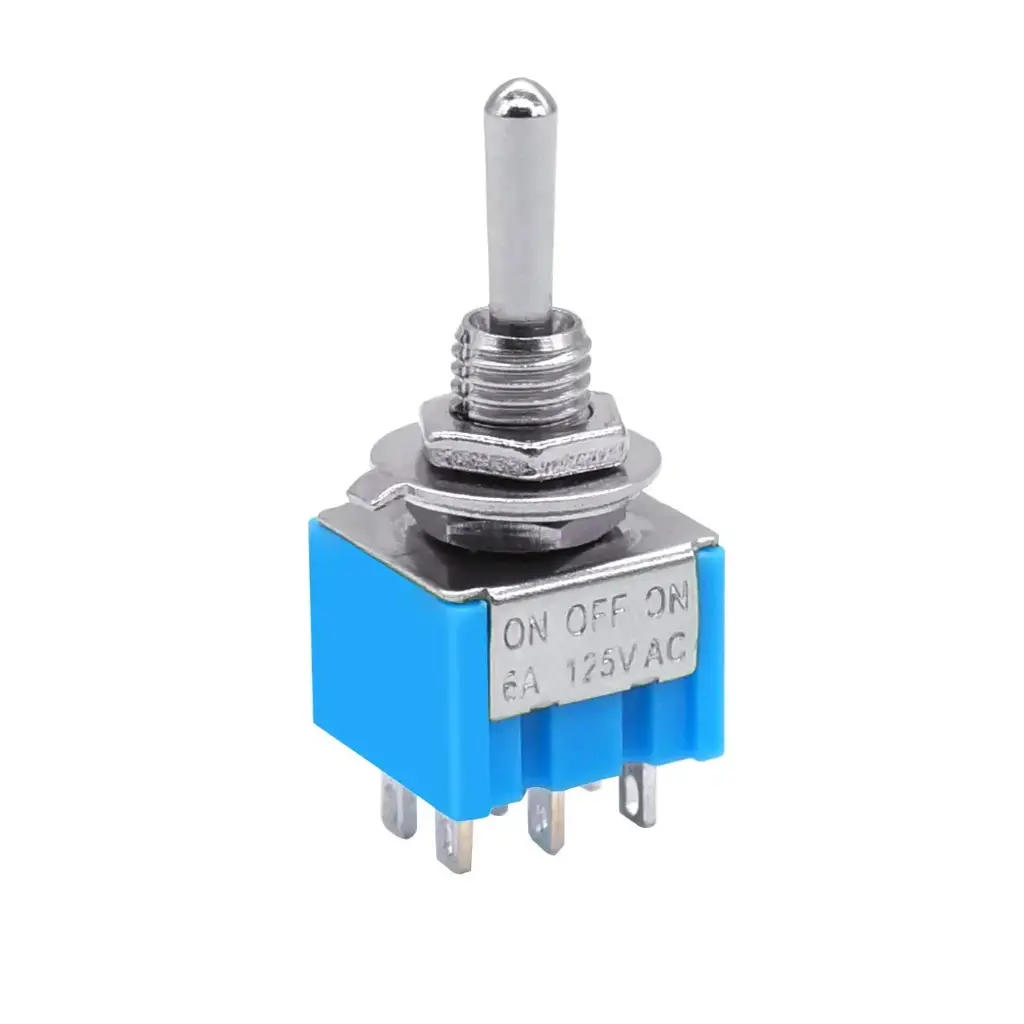

🔄 6‑Pin Toggle Switch – DPDT On‑Off‑On (Double‑Pole, Double‑Throw)

A versatile 6‑pin DPDT toggle switch that controls two separate circuits simultaneously. Featuring three positions (On–Off–On), it’s ideal for reversing motor polarity, switching power sources, or selecting between dual signal paths.

⚙️ Key Features:

• DPDT action: operates two circuits in sync

• 3-position toggle: On‑Off‑On style

• 6 solder/lug terminals arranged in two rows of three

• Electrical rating: typically 6 A @ 125 VAC or 3 A @ 250 VAC

• Compact size (~13 × 12 × 10 mm) with panel cutout around 6 mm

• Robust mechanical life: ≥ 10,000 cycles

• Dielectric strength: up to 1500 VAC

📊 Wiring & Operation

Each side functions as an SPDT switch. The middle pin is Common (C), and the top & bottom pins are the two throws.

• Left side pins: control circuit A

• Right side pins: control circuit B

3-position logic:

• Up: both commons connect to upper throws

• Middle: both commons open

• Down: both commons connect to lower throws

Common use-case: To reverse a DC motor, wire +V and –V to the throws; attach motor leads to the commons.

💡 Typical Applications:

• Motor reversal

• Dual‐power source selection (e.g., battery vs USB)

• Audio signal switching

• Control panels, robotics, automation

• Custom electronics requiring DPDT control
