Mini Push Button 2 Pins

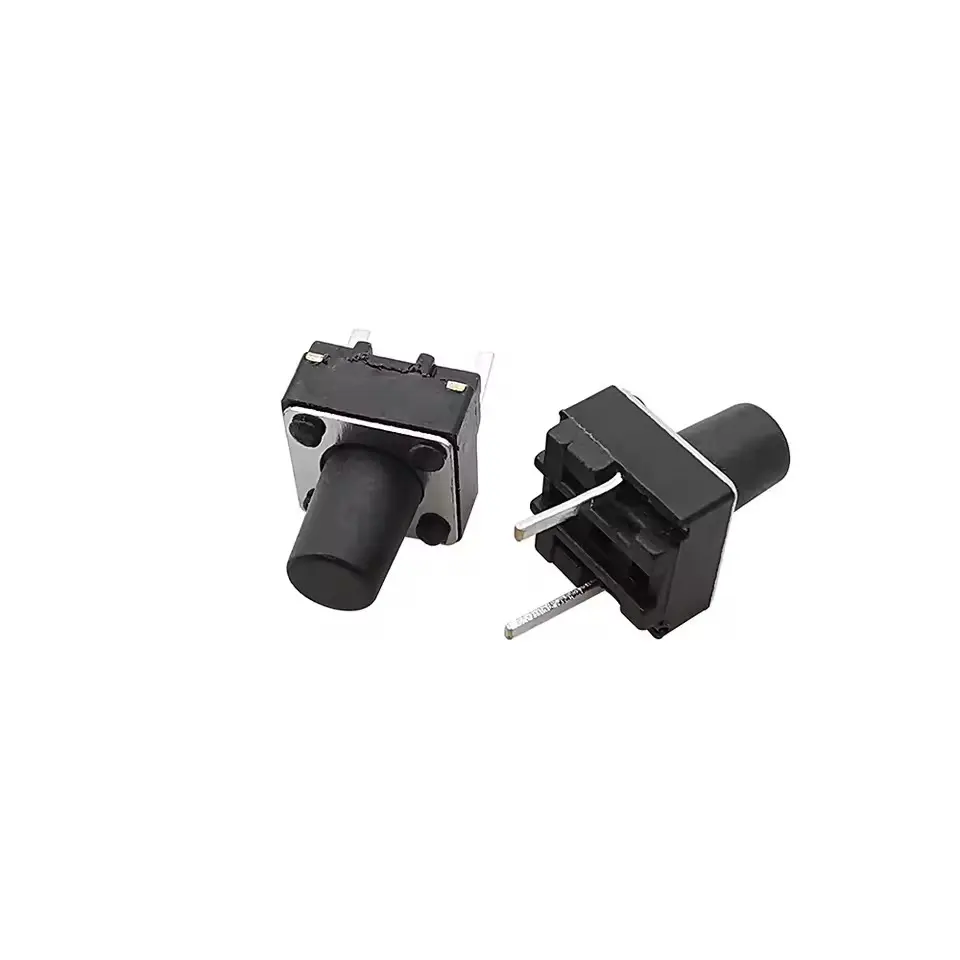

π Mini Push Button Switch β 2-Pin (6Γ6Γ9.5mm)
This mini tactile push button is a compact, durable momentary switch ideal for DIY electronics, Arduino projects, and embedded systems. With a 6Γ6mm base and 9.5mm height, it offers a reliable tactile feel and simple 2-pin connection for easy breadboard or PCB use.
βοΈ Technical Specifications
| Parameter | Specification |
|---|---|
| Type | Tactile Push Button (momentary) |
| Pin Count | 2 pins (normally open) |

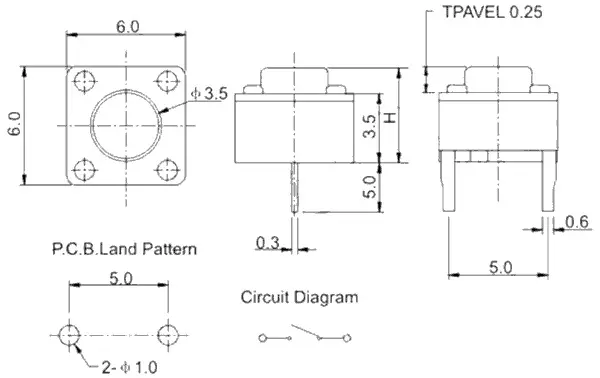

| Base Size | 6 mm Γ 6 mm |
| Height | 9.5 mm (stem height) |
| Mount Type | Through-hole (THT) |
| Operating Voltage | 12V DC max |
| Contact Resistance | β€ 100 mΞ© |
| Current Rating | ~50mA β 500mA (low-power circuits) |
| Lifespan | Up to 100,000 presses |
β Features
π Momentary operation β only ON when pressed
𧩠Compact size β fits on breadboards or custom PCBs
π§ͺ Ideal for digital input to Arduino or microcontrollers
π‘ Use in menus, reset buttons, control panels, and more
π οΈ Compatible with jumper wires or direct soldering
