🛠️ PNP Transistor – 2N2907 (TO‑92 / TO‑18)

Overview

The 2N2907 is a widely used general-purpose PNP transistor, ideal for switching and amplification in low-power electronics. It's the PNP complement to the popular NPN 2N2222, commonly used with microcontrollers and discrete circuits

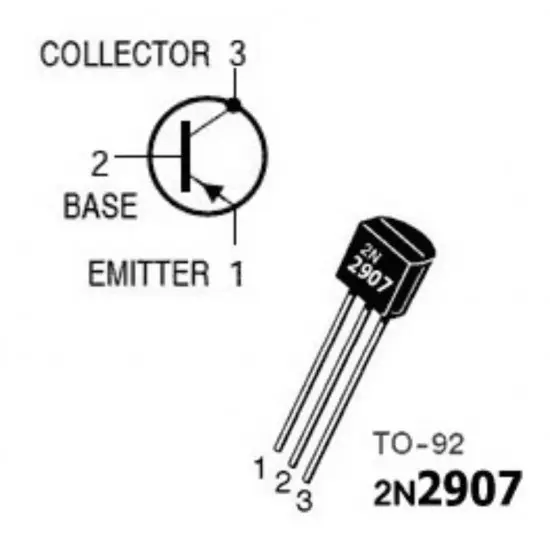

Pinout (Flat face facing you, leads down)

1. Emitter (P-side, positive)

2. Base

3. Collector (N-side, negative toward load)

Typical Wiring – Arduino Switching

scss
CopyEdit
Emitter → +V supply
Collector → Load → GND
Base → Arduino digital pin → resistor (~1 kΩ)

• Pull base low (towards emitter) to turn transistor ON

• Include a flyback diode across inductive loads (motors, relays)

• Ensure Arduino ground and +V share a common reference

Applications

• Low-side switching of small motors, lamps, relays

• Audio and sensor signal amplification

• Part of push-pull stages when paired with 2N2222

• Timing circuits, oscillators

• Mixed-signal and logic-level interfacing
