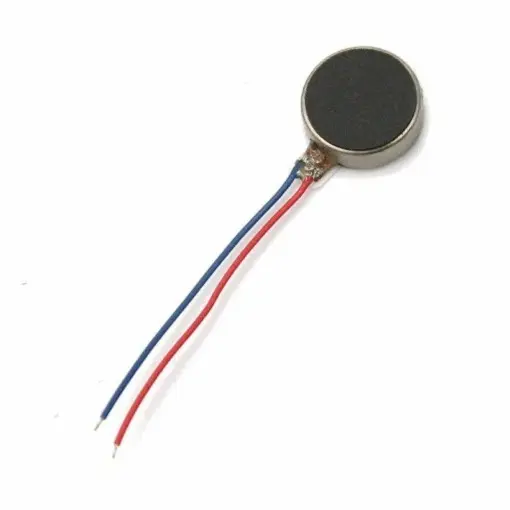

Vibration motor 10 mm
🌟 Mini Coin Vibration Motor – RCD1027 (10 mm x 2.7 mm)
Overview
The RCD1027 is a compact coin-type DC vibration motor, measuring just 10 × 2.7 mm and optimized for lightweight wearable devices, mobile alerts, and haptic feedback applications. It delivers gentle vibrations up to approximately 1 G, making it ideal for close-range tactile notifications.
Key Features
Operates from 1.5–3.7 V DC (rated 3 V)
Typical current draw is around 50–80 mA at 3 V
Speed: ~11,000 ± 2,500 RPM
Compact size: 10 mm diameter × 2.7 mm thick
Lightweight (~1 g) and adhesive-backed for easy mounting
Long service life (~50,000 on/off cycles); rugged construction up to 3 m drops and vibration tested
Technical Specifications
| Parameter | Value |
|---|---|
| Operating Voltage | 1.5–4 V DC |
| Rated Voltage | 3 V DC |
| Typical Current | ~50–80 mA |
| Vibration Speed | ~11,000 RPM ±2,500 |
| Vibration Strength | ~0.7–1.0 G |
| Size (Ø × T) | 10 mm × 2.7 mm |
| Temperature Range | –30 °C to +70 °C |
| Weight | ~1 g |
Usage
Red wire → Positive (connect to 1.5–3.7 V supply)
Blue wire → Ground
Low voltage or PWM control (e.g., Arduino analogWrite) can modulate vibration intensity
For wearable projects, adhere magnetically or via adhesive backing—it provides tactile feedback without bulk
Applications
Haptic feedback in wearables, phone alerts, smart controllers
Embedded vibration in toys and handheld devices
Micro-robotics (e.g., bristlebots)
Notification systems in DIY and IoT designs
✅ Resources
📄 Datasheet: Specifications confirm motor size, voltage, current draw, speed, and endurance (~50k cycles) protosupplies.com
🎥 YouTube Tutorial:https://youtu.be/aNDjmxcdecA?si=9p3xIfbGAobmV_B9
