📝 Overview
The Water Level Float Switch is a simple and reliable sensor designed to detect liquid levels in tanks and containers. It operates using a floating mechanism that moves with the water level to open or close an internal electrical switch. It is commonly used in automatic water pumps, water tank monitoring systems, and Arduino-based projects.
⚙️ Key Features
Detects high and low water levels.
Automatic ON/OFF switching mechanism.
Simple electrical connection.
No external power required for switch operation.
Suitable for water tanks and liquid containers.
Easy installation and maintenance.
Can be used with relays and microcontrollers.
📦 Technical Specifications
Parameter | Value |
|---|
Product Type | Water Level Float Switch |
Sensor Type | Mechanical Float Switch |
Operating Principle | Magnetic Reed Switch |
Output | Digital ON/OFF |
Contact Type | Normally Open / Normally Closed (depending on installation) |
Connection | 2-Wire |

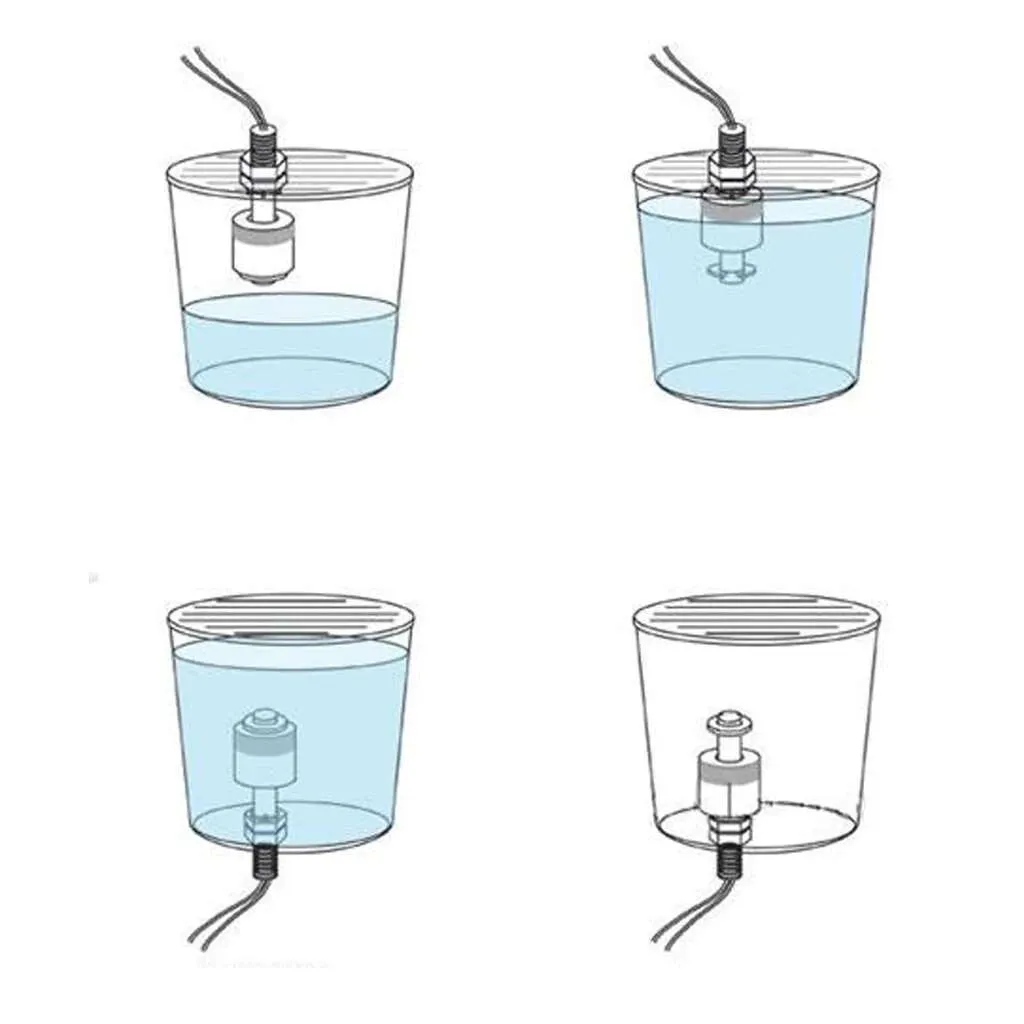

Mounting Type | Vertical or Horizontal (depending on model) |
Power Supply | Not Required |
Liquid Detection | Water and Compatible Liquids |
📦 Package Includes

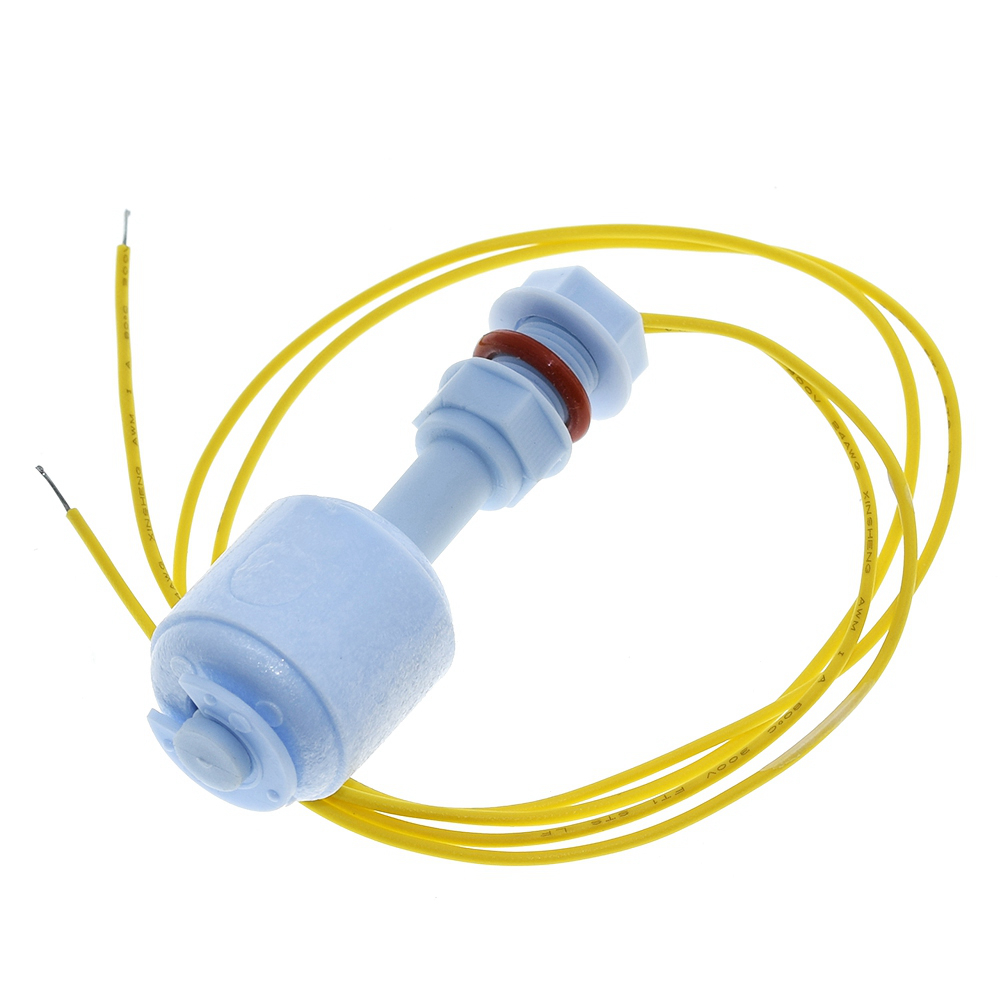

- 1 × Water Level Sensor Float Switch
