📝 Overview

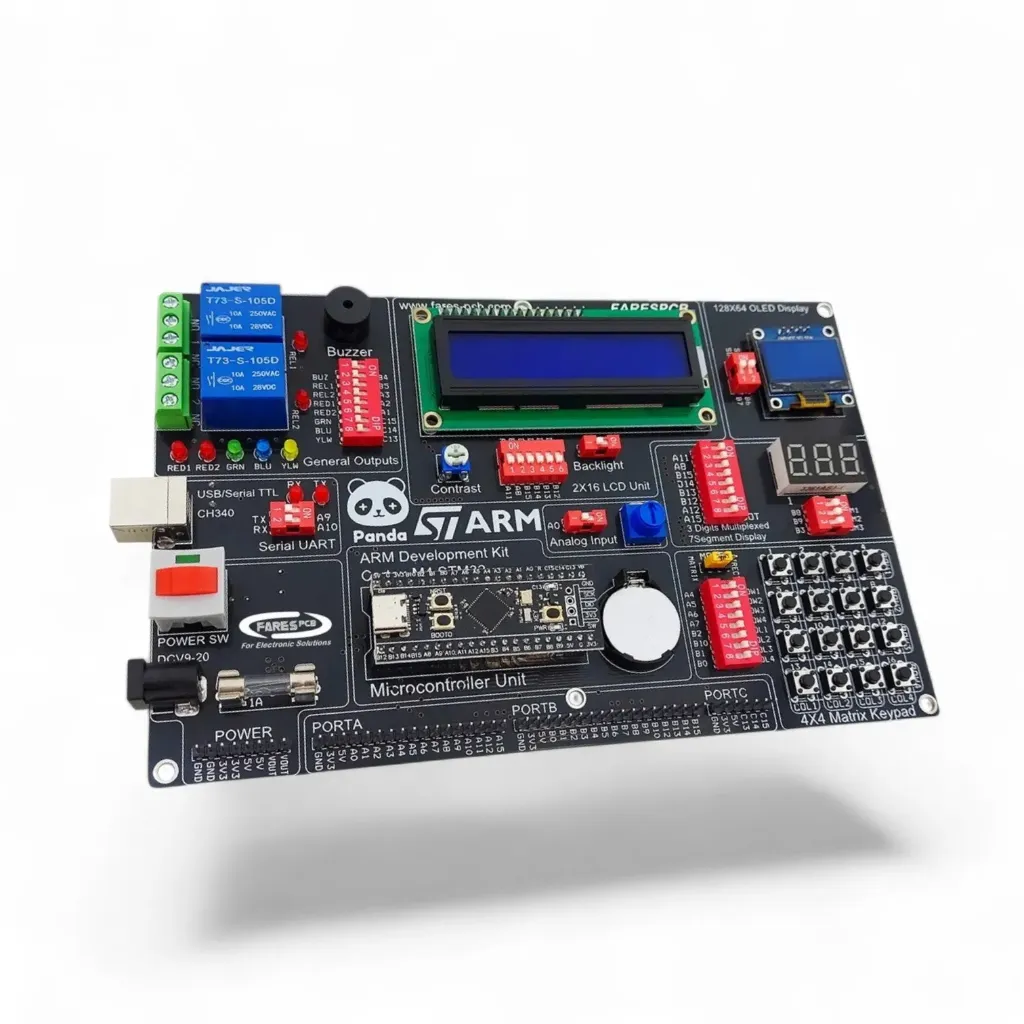

The Panda+ Kit is an educational development and training board based on the STM32F401RCT6 microcontroller, featuring an ARM Cortex-M4 core. It integrates multiple input and output devices, displays, communication interfaces, and GPIO connections, making it suitable for embedded systems development, microcontroller programming, and practical electronics training.
⚙️ Key Features
Based on the STM32F401RCT6 microcontroller with ARM Cortex-M4 core.
Powered via USB or an external adapter.
16 input switches with two operating modes.
Five output LEDs.
Two relay outputs with LED indicators.
Built-in output buzzer.
16 × 2 character LCD with adjustable contrast and backlight.
0.96-inch, 128 × 64 pixel I²C OLED display.
Three-digit seven-segment display.
Analog input interface.
CH340 USB-to-TTL serial converter.
All GPIO pins accessible through pin headers.
📦 Technical Specifications
| Parameter | Specification |
|---|
| Development Board | Panda+ Kit |
| Microcontroller | STM32F401RCT6 |
| Processor Core | ARM Cortex-M4 |
| Input Switches | 16 |
| Output LEDs | 5 |
| Relay Outputs | 2 |
| LCD Display | 16 × 2 Characters |
| OLED Display | 0.96-inch, 128 × 64, I²C |
| Seven-Segment Display | 3 Digits |
| Serial Converter | CH340 USB-to-TTL |
| Power Supply | USB or External Adapter |
| GPIO Access | Pin Headers |
🛠️ Applications
Embedded systems development.
STM32 microcontroller programming.
Digital and analog input/output experiments.
Relay control and automation projects.
LCD and OLED interfacing.
Serial communication experiments.
Educational laboratories and practical electronics training.
📦 Package Includes
If you need it, add:
Note: Optional components may not be included in the standard package. Please confirm the selected kit configuration before ordering.
